専用線を用いてViALOOP同士を接続します。WAN側にアドレスをふる形態です。

本設定は簡単設定ユーティリティではできません。コマンドでの設定となります。

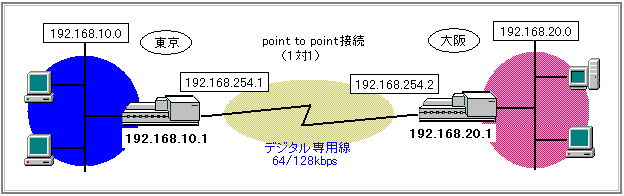

<構成図>


コマンドによる設定

東京ViALOOP

conf#wan hsd(128kbpsを利用する場合は、wan hsd 128 とする)

conf#interface lan addr=192.168.10.1,255.255.255.0

conf#interface hsd addr=192.168.254.1,255.255.255.0

conf#ipripstatic delete all

conf#ipripstatic add dst=192.168.20.0,255.255.255.0 nexthop=192.168.254.2

conf#nat off

conf#dhcpserver off

conf#exit

configuration modified. save OK ? (y/n): y

please reset#reset

Do you want to continue (y/n)?: y



大阪ViALOOP

conf#wan hsd (128kbpsを利用する場合は、wan hsd 128 とする)

conf#interface lan addr=192.168.20.1,255.255.255.0

conf#interface hsd addr=192.168.254.2,255.255.255.0

conf#ipripstatic delete all

conf#ipripstatic add dst=192.168.10.0,255.255.255.0 nexthop=192.168.254.1

conf#nat off

conf#dhcpserver off

conf#exit

configuration modified. save OK ? (y/n): y

please reset#reset

Do you want to continue (y/n)?: y
