Presentation mode function assignment page

Presentation mode function assignment

Under Presentation mode, the mouse can be used to perform functions such as going to the next slide or returning to the previous slide in presentation apps such as PowerPoint. When presentation mode is enabled, you can switch between it and regular mouse mode.
You can customise specific operations of the buttons in presentation mode such as to disable scrolling.

To top of page

How to assign functions

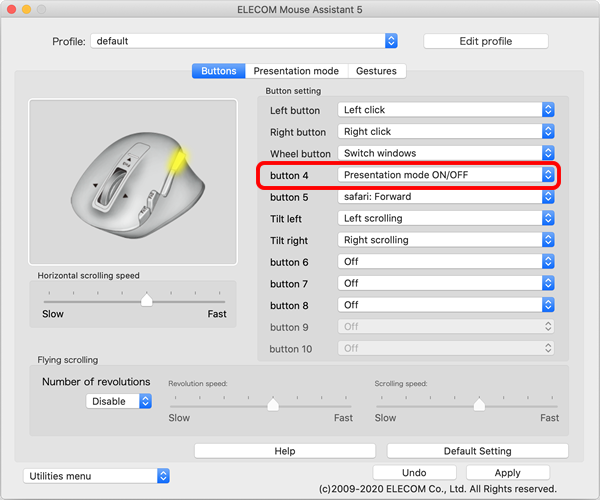

  1. Select “Presentation mode ON/OFF” from the selection box of the button to be set.
    e.g. When assigning Button 4 (“Back” button)

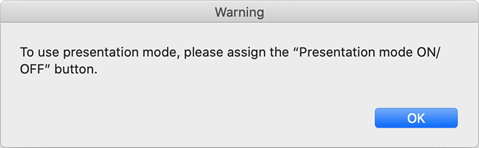

    • If none of the buttons are set to “Presentation mode ON/OFF” under the “ Buttons” tab, clicking on the “Presentation mode” tab will bring up a dialogue and changes cannot be made.

      When editing presentation mode, make sure to set a button to “Presentation mode ON/OFF” under the “Buttons” tab.

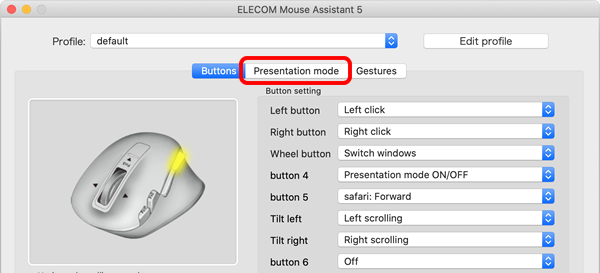

  2. Click on the “Presentation mode” tab.

  3. Under the settings page, settings such as assigning function for each button, turning on/off the scroll function, horizontal scroll speed, and flying scroll can be changed.
    • Horizontal scroll speed and flying scroll function settings are the same as their settings under the “Buttons” tab.

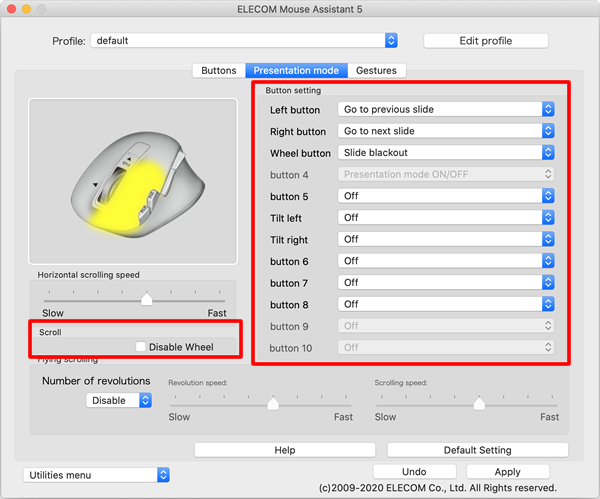

    Settings under the “Presentation mode function assignment” tab
    • Button setting
      Functions under “Assignable functions” may be assigned for each of the buttons listed.
      The button assigned to “Presentation mode ON/OFF” cannot be changed.
    • Flying Scrolling
      You can set up high speed scrolling. When “Disable wheel” is on, settings are unavailable.
      Jump Flying scroll
    • Scroll
      When “Disable wheel” is checked, the wheel cannot be used to scroll. “Mouse pointer speed” will be grayed out and settings are unavailable.
    • Horizontal scrolling speed
      Horizontal scrolling speed can be set to 8 levels.
  4. Click on the “Apply” button on the settings page.
    Presentation mode function settings are complete.
    • The assigned functions will not be reflected if the “Apply” button is not clicked on.
      If the “Undo” button is clicked, the settings will not be reflected and the setting page will close.

To top of page

Assignable functions

In presentation mode, the following functions can be assigned to the buttons.

Display name and explanation of function

Off
Click functions for the assigned buttons will be disabled.
Go to previous slide
Show one slide before.
Go to next slide
Show the next slide.
Slide blackout
Black out the screen.
Slide whiteout
Return the screen to before blackout.
Volume Up
Increase the volume for the entire Macintosh system.
Volume Down
Decrease the volume for the entire Macintosh system.
End presentation
End the slideshow.
Start presentation (PowerPoint)
Start the PowerPoint slideshow.
Start presentation (KeyNote)
Start the KeyNote slideshow.
Go to last slide (PowerPoint)
Go to the last slide in the PowerPoint slideshow.
Go to last slide (KeyNote)
Go to the last slide in the KeyNote slideshow.
Pause (KeyNote)
Pause the slideshow in KeyNote.
Show/Hide buttons (KeyNote)
Show or hide buttons in KeyNote.
Show slide number (KeyNote)
Show slide number in KeyNote.
Switch between main display and presenter display (KeyNote)
Switch between main display and presenter display in KeyNote.
Show/Hide presenter notes (KeyNote)
Show or hide presenter notes in KeyNote.
Scroll up presenter notes (KeyNote)
Scroll up KeyNote presenter notes.
Scroll down presenter notes (KeyNote)
Scroll down KeyNote presenter notes.
Enlarge presenter notes font size (KeyNote)
Enlarge KeyNote presenter notes font size.
Reduce presenter notes font size (KeyNote)
Reduce KeyNote presenter notes font size.
Go to first slide (KeyNote)
Go to the first slide in the KeyNote slideshow.
Gesture
Perform functions according to mouse trails.
JumpGesture function assignment page
