Bearing support unit
M-BS10
User Manual

How to use

Items included in this package

The following are included in this package. Verify the package to ensure all items are accounted for prior to using this product. While every effort has been made to ensure proper packaging, in the event that any shortage or damage is discovered, please contact the retailer where the product was purchased.

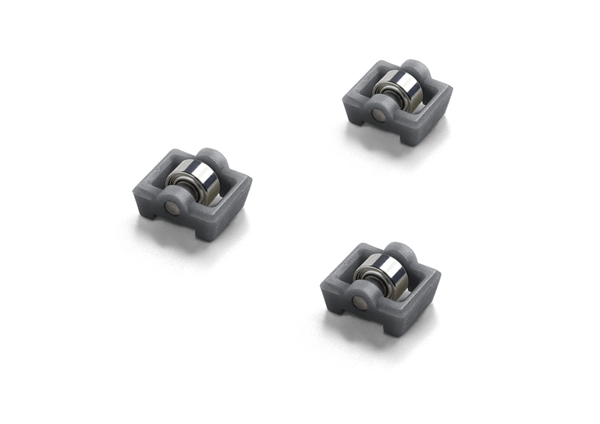

  • Bearing support unit × 3
  • Removal tool × 1

How to replace support parts

* This manual uses illustrations of the "M-IT11" series for explanation.

When replacing the support parts, take care not to damage the sensor.

1) Use a finger (or a pen) to push the ball out from the underside.

2) Hold onto the included removal tool with your fingers and push it into the notch on the sides of the support part until you hear a click.

3) Pull the removal tool hard to remove the support part.

4) Fit the replacement support part into the inner catch.

5) Press the support part in with your finger until you hear a click.

6) Insert the ball into the trackball housing.

Product specifications

Dimensions Approximately width 8 mm × depth 7 mm × height 4 mm /
width 0.31 in. × depth 0.28 in. × height 0.16 in.
Weight Approximately 1 g / 0.04 oz
Package contents Bearing support unit × 3
Removal tool × 1

Compliance status

Intellectual property rights

  • ELECOM CO., LTD. owns the copyright to this manual.
  • All products and company names on this product and the package are trademarks or registered trademarks of their respective owners.
  • Duplicating and transferring this document in part or whole is prohibited.
  • The images are for illustration purposes only and may differ from your actual product.
  • In order to make improvements to this product and for improved safety, the colors and specifications are subject to change without prior notice.
  • We shall bear no responsibility for any device failure or malfunction of other devices resulting from the use of this product.
  • When exporting this product, check the export regulations for the country of origin.
