Compliant model: SP10
This manual describes the important precautions you should take for safe operation of this product.
Observe these precautions carefully to avoid personal injury, damage, fire, and other problems.
Meaning of symbols
WARNING
Failure to observe precautions carries the possibility of serious personal injury or death due to fire, electric shock, or other causes.
CAUTION
Failure to observe precautions may result in personal injury due to electric shock or other causes, and may damage other equipment.
Prohibited action
Mandatory action
Situation that needs attention
Notes and reference information
If a foreign object (water, metal chips) enters this product, stop using immediately and turn OFF the power. Disconnect the USB cable from the USB AC adaptor, USB power supply, or computer as well.
Continuing to use the product as it is may cause a fire or an electric shock.
If abnormalities such as overheating, emitting smoke, or emitting strange odors occur, stop using the product immediately. To prevent burns, first ensure that the device is not overheating, then turn OFF the power and do not use the device any longer. Disconnect the USB cable from the USB AC adaptor, USB power supply, or computer as well. Afterwards, please contact your dealer.
Continuing to use the product as it is may cause a fire or an electric shock.
Please do not drop or hit this product.
In the event that the product is damaged, cease usage immediately and turn OFF the power. Disconnect the USB cable from the USB AC adaptor, USB power supply, or computer as well. Cease usage after that and consult your retailer.
Fires or electric shocks may occur if this product is used when damaged.
Do not attempt to disassemble, modify, or repair this product.
Doing so may cause a fire, electric shock, or product damage.
Such malfunctions are not covered under warranty.
Do not put this product in fire.
Breakage may cause fire or injury.
Do not use or store this product near water.
If any liquid gets inside the product, it may cause malfunction, fire, or electric shock.
Do not use this product in a hospital or an aircraft.
Never use this product in places where a high level of safety is required. Doing so may cause errors in the operation of instruments in special medical institutions or aircrafts.
Do not leave the product exposed to high temperatures.
This product is a sensitive electronic device. Avoid using or storing in places with high temperature, high humidity, or long-term direct sunlight or leaving in hot cars for extended periods. In addition, rapid changes in the surrounding temperature may lead to malfunction caused by internal condensation.
Do not use or store this product in any of the following environments:
If the product becomes wet, please wipe it dry with a dry cloth as soon as possible.
The product may become discolored, mold may grow, or the color may run if the water is not wiped off.
Please be careful of excessive volume.
Please be cautious of excessive volume when connecting etc., to prevent damage to your ears due to the sudden loud noise.
Cleaning the Product
If this product becomes dirty, wipe it with a soft, dry cloth.
Using a volatile liquid such as paint thinner, benzene or alcohol can affect the material quality and/or discolor this product.
Please take caution regarding the following for disinfection.
Gently soak a cleaning cloth, such as a microfiber cloth, in the disinfectant solution. Ensure there are no loose droplets and gently wipe the product using the cloth.
After wiping, dry thoroughly and wipe off any residual liquid.
*Do not spray any liquid onto the product directly. Doing so can cause electric malfunctions.
Do not spray any liquid onto the product directly.
Doing so can cause electric malfunctions.
Do not use organic solvents or expose the product to ultraviolet light.
Using these can cause damage to the exterior such as the deterioration of the housing components or paints.
We recommend using disposable gloves.
When using any alcohol-based products, please check its associated precautions and that it is appropriate for the specific purpose.
Please note that the customer is fully responsible for repair costs in the event that the product is damaged or operates abnormally due to the disinfection process.
It is recommended that you sanitize your hands before and after using PCs and peripherals that are used by multiple people to prevent the spread of infection through the equipment.
Regarding disposal
The band of frequencies used by this product are used to operate local wireless base stations (wireless stations that require a license) and designated low-power wireless stations (wireless stations that do not require a license) for the detection of moving objects on factory production lines in addition to microwave ovens, kitchenware and other industrial/scientific/medical devices.
| Frequency Band Used | 2.4 GHz |
|---|---|
| Frequency Modulation | Frequency Hopping Spread Spectrum (FHSS) |
| Estimated Impedance Distance | Approx. 10m |
| Frequency Change | All bands useable and possible to avoid “premises radio station” or “specified low power radio station” bands |
| Technical Standards Conformity Certification Number |  |
① Speaker
Outputs audio or music.
● is the left channel. ● is the right channel.
After purchasing, there will be a sheet affixed to the surface of the product to prevent dirtying of the silicone portion.
Please peel it off before use.
② USB cable USB Type-C® plug
③ AUX jack
Connects to the ⌀3.5mm audio output jack of a computer or similar device using the included ⌀3.5mm mini plug cable.
④ Headphone connection jack
Connects to the ⌀3.5mm mini plug of your headphones or ear buds.
Audio will stop playing from the speaker once you connect in this way.
⑤ Controller
Power the product ON/OFF, switch modes, or adjust the volume.
⑥ LED light
Displays power ON/OFF, pairing status, Bluetooth mode, USB cable mode and AUX mode.
⑦ Power button
⑧ Volume button (+)
Increases the volume.
⑨ Volume button (-)
Decreases the volume.
⑩ USB-A adaptor
The product can be used while connected to a USB-A port by inserting into the USB Type-C connector of the USB cable.
List of Operations
Function |
Operation |
Light status |
Voice Guidance |
|---|---|---|---|
Power on |
Hold down power button for 2 seconds *Please refer to “Changing connection mode” concerning connection mode while power is ON. |
Red: Slow blinks (once every 3 seconds) |
Power On |
Power off |
Hold down power button for 4 seconds |
Light is off. |
Power Off |
Switch connection mode |
Hold down the power button for 2 seconds to change from USB cable mode → Bluetooth mode → AUX mode, in that order. *Please refer to “Changing connection mode” for more details. |
||
USB cable mode |
Red: Slow blinks (once every 3 seconds) |
Mode Change |
|
Bluetooth mode |
Blue: Slow blinks (once every 3 seconds) |
Mode Change |
|
AUX mode |
Green: Slow blinks (once every 3 seconds) |
Mode Change |
|
AUX mode |
Connect to device with ⌀3.5mm mini plug cable *It is possible to switch to other modes while connected |
Green: Slow blinks (once every 3 seconds) |
AUX |
Bluetooth pairing |
Automatically switches to pairing mode upon entering Bluetooth mode |
Rapid blue flashing |
Pairing |
Pairing successful |
– |
Blue: Slow blinks (once every 3 seconds) |
Bluetooth Connected |
Pairing failed |
– |
Rapid blue flashing |
Bluetooth Disconnected |
Play/Pause |
Press power button for a moment |
During playback: Flashing *The color of the LED light changes depending on the mode. |
- |
Volume up |
Press volume button (+) for a moment |
- |
- |
Volume down |
Press volume button (-) for a moment |
- |
- |
1) Connect the USB Type-C plug of the USB cable that comes with this product into your computer's USB Type-C port.
If your computer does not have a USB Type-C port, you can use the included USB-A adaptor to connect to the USB-A port instead.
2) Hold down the power button of the controller for 2 seconds to power the product ON.
The LED light will slowly blink red (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “USB Cable”.
3) Playback the audio source with the connected device.
The volume adjustment of this product is not synchronized with the connected device. Adjust the volume of the connected device as well.
Change your computer settings
Please confirm whether this product is configured to be your computer speaker. If this product is not selected, please change it to be this product.

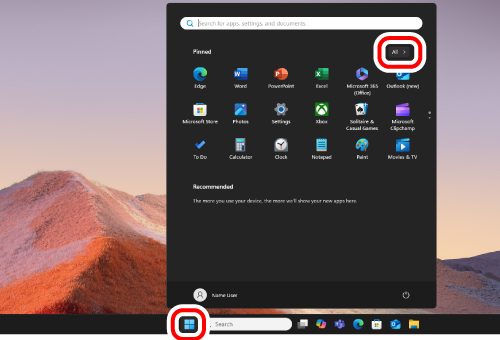

1) Click “Start” and then “All”.

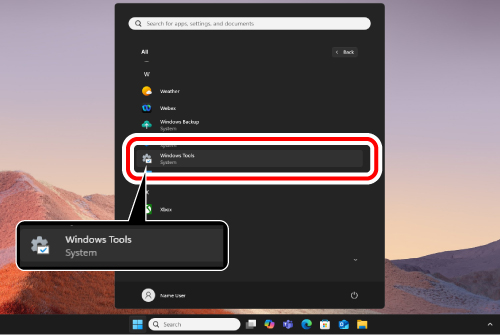

2) Click “Windows Tools”.
The “Windows Tools” screen will appear.

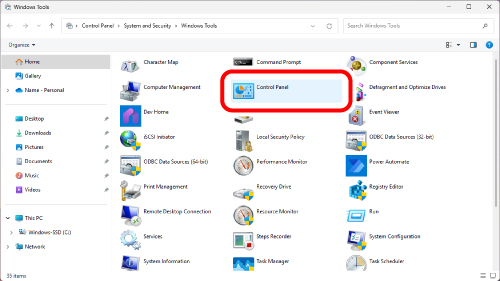

3) Double-click “Control Panel”.

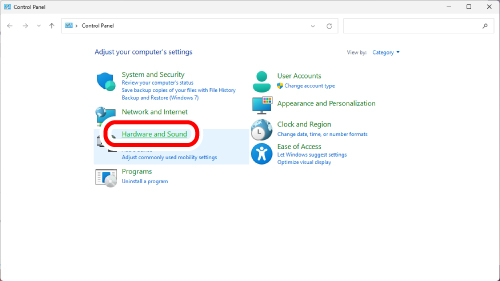

4) Click “Hardware and Sound”.
5) Click “Sound”.
6) If
is shown under “Speakers USBAudio2.0” in the “Playback” tab, then this product is currently selected.

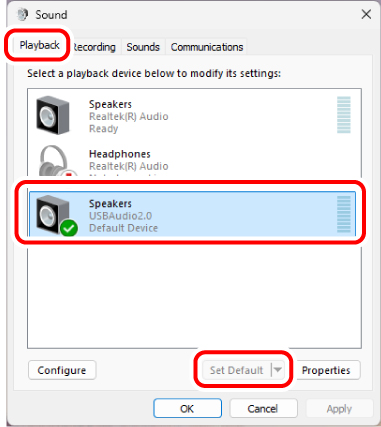

If there is no icon, click “Speakers USBAudio2.0”, then click “Set Default”.

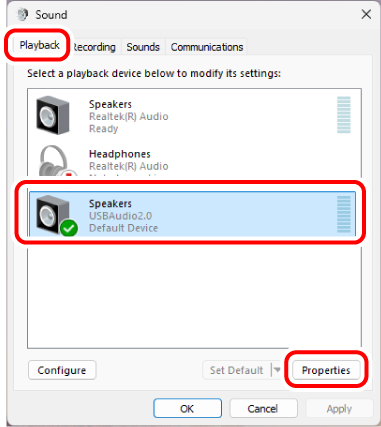

7) Click “Speakers USBAudio2.0” then click “Properties”.

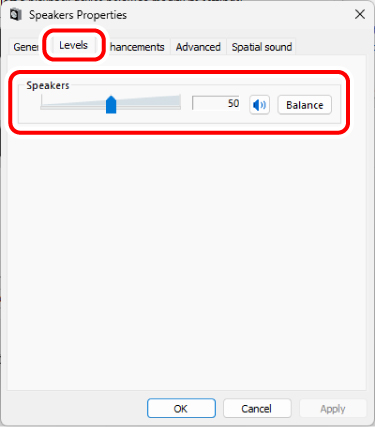

8) Click on the “Levels” tab; if the volume level is not set to 0, sound will play from this product.
If the volume level is set to 0, please adjust the volume level.
9) Click “OK” then close “Properties”.
10) Click “OK” then close “Sound”.
Your computer settings are now complete.
1) Connect the USB Type-C plug of the USB cable that comes with this product into your computer's USB Type-C port or into your USB AC adaptor.
・ If connecting to your computer's USB Type-C port
If your computer does not have a USB Type-C port, you can use the included USB-A adaptor to connect to the USB-A port instead.
・ If connecting to a USB AC adaptor
2) Insert the head of the included ⌀3.5mm mini plug cable into the AUX jack of this product.
3) Hold down the power button of the controller for 2 seconds to power the product ON.
・ If connecting to a USB AC adaptor
Activates in Bluetooth mode. The LED light will slowly blink blue (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “Pairing”.
・ If connected to your computer's USB Type-C port
Activates in USB cable mode. There will be blinking (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “USB Cable”.
4) Insert the plug on the opposite end of the included ⌀3.5mm mini plug cable into the ⌀3.5mm audio output jack on your computer.
Automatically switches to AUX mode. The LED light will slowly blink green (once every 3 seconds), then the voice guidance will announce “AUX”.
5) Playback the audio source with the connected device.
The volume adjustment of this product is not synchronized with the connected device. Adjust the volume of the connected device as well.
Change your computer settings
Please confirm whether this product is configured to be your computer speaker. If this product is not selected, please change it to be this product.
1) Click “Start” and then “All”.
2) Click “Windows Tools”.
The “Windows Tools” screen will appear.
3) Double-click “Control Panel”.
4) Click “Hardware and Sound”.
5) Click “Sound”.
6) If a icon is displayed next to “Headphones (connected audio device name)” under the “Playback” tab, then this product has been selected.
If there is no icon, click “Headphones (connected audio device name)”, then click “Set Default”.

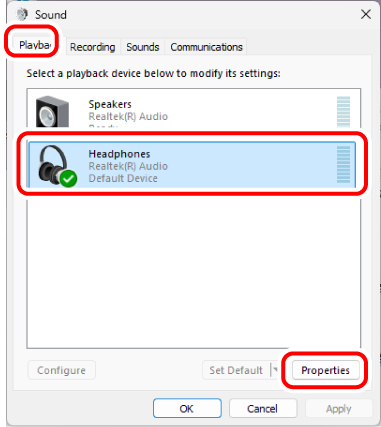

7) Click “Headphones (connected audio device name)”, then click “Properties”.

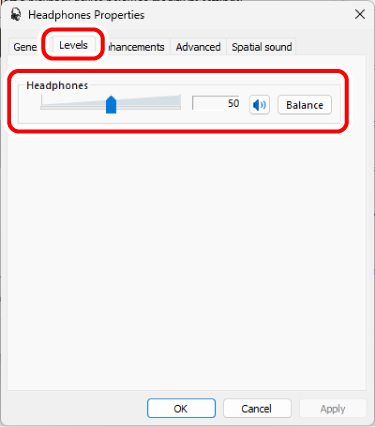

8) Click on the “Levels” tab; if the volume level is not set to 0, sound will play from this product.
If the volume level is set to 0, please adjust the volume level.
9) Click “OK” then close “Properties”.
10) Click “OK” then close “Sound”.
Your computer settings are now complete.
1. Enable the pairing mode
Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them.
1) Connect the USB Type-C plug of the USB cable that comes with this product into your computer's USB Type-C port or into your USB AC adaptor.
・ If connecting to your computer's USB Type-C port
If your computer does not have a USB Type-C port, you can use the included USB-A adaptor to connect to the USB-A port instead.
・ If connecting to a USB AC adaptor
2) Hold down the power button of the controller for 2 seconds to power the product ON.
・ If connecting to a USB AC adaptor
Activates in Bluetooth mode. The LED light will slowly blink blue (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “Pairing”. Please proceed to step 4).
・ If connected to your computer's USB Type-C port
Activates in USB cable mode. There will be blinking (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “USB Cable”.
3) Hold down the power button of the controller for 2 seconds.
It will switch to Bluetooth mode. The LED light will slowly blink blue (once every 3 seconds), then the voice guidance will announce “Mode Change”, followed by “Pairing”.
4) Enter Bluetooth pairing mode.
If a connected device that has already been paired is in the vicinity
If the automatic connection function or the trusted devices setting of a connected device is enabled, it will connect to that device automatically.
The LED light will blink blue slowly (once every 3 seconds).
The voice guidance will announce “Bluetooth Connected”.
2. Pairing with a PC

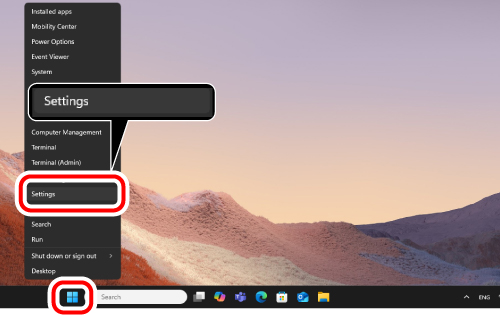

1) Right click on “Start” on the bottom of the screen and select “Settings”.
The “Settings” page will appear.
2) Under “Home”, select “Add device” under “Bluetooth devices”.
The “Add a device” page will appear.

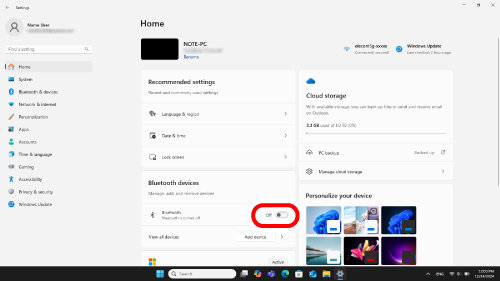

If “Bluetooth” is off, turn it on.
3) Select “Bluetooth”.
4) Once the “Add a device” screen is displayed, click “SP-P10CUB”.
Pairing begins.
5) “Your device is ready to go!”will be displayed.
6) Once the LED light of this product lights up a constant blue, pairing is complete.
The voice guidance will announce “Bluetooth connected”.
7) Click on “Done”.

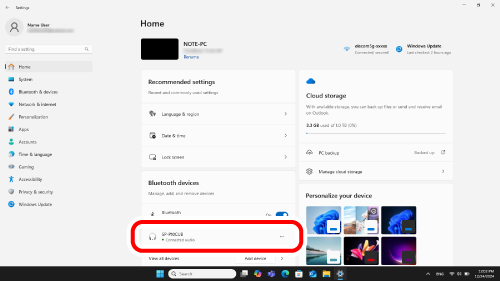

8) This product will be added to “Bluetooth devices” and connection is complete.
You can now use this product.
Change your computer settings
Please confirm whether this product is configured to be your computer speaker. If this product is not selected, please change it to be this product.
1) Click “Start” and then “All”.
2) Click “Windows Tools”.
The ”Windows Tools” screen will appear.
3) Double-click “Control Panel”.
4) Click “Hardware and Sound”.
5) Click “Sound”.
6) If a icon is displayed next to “Headphones SP-P10CUB” under the “Playback” tab, then this product has been selected.
If there is no icon, click “Headphones SP-P10CUB”, then click “Set Default”.

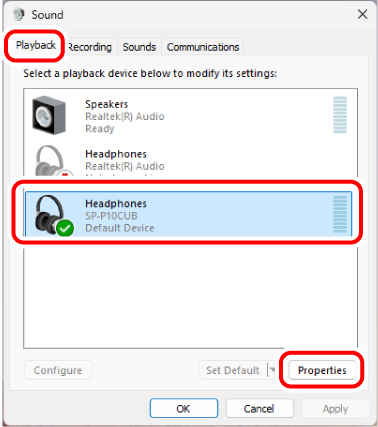

7) Click “Headphones SP-P10CUB”, then click “Properties”.
8) Click on the “Levels” tab; if the volume level is not set to 0, sound will play from this product.
If the volume level is set to 0, please adjust the volume level.
9) Click “OK” then close “Properties”.
10) Click “OK” then close “Sound”.
Your computer settings are now complete.
1. Enable the pairing mode
Pairing involves registering Bluetooth devices (in this case, this product and an iPad or an iPhone) with each other, and authorizing a connection between them.
1) Connect the USB Type-C plug of the USB cable that comes with this product into your computer's USB Type-C port or into your USB AC adaptor.
・ If connecting to your computer's USB Type-C port
If your computer does not have a USB Type-C port, you can use the included USB-A adaptor to connect to the USB-A port instead.
・ If connecting to a USB AC adaptor
2) Hold down the power button of the controller for 2 seconds to power the product ON.
・ If connecting to a USB AC adaptor
Activates in Bluetooth mode. The LED light will slowly blink blue (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “Pairing”. Please proceed to step 4).
・ If connected to your computer's USB Type-C port
Activates in USB cable mode. There will be blinking (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “USB Cable”.
3) Hold down the power button of the controller for 2 seconds.
It will switch to Bluetooth mode. The LED light will slowly blink blue (once every 3 seconds), then the voice guidance will announce “Mode Change”, followed by “Pairing”.
4) Enter Bluetooth pairing mode.
If a connected device that has already been paired is in the vicinity
If the automatic connection function or the trusted devices setting of a connected device is enabled, it will connect to that device automatically.
The LED light will blink blue slowly (once every 3 seconds).
The voice guidance will announce “Bluetooth Connected”.
2. Pairing with an iPad or an iPhone
The following instructions are for iOS Ver.17.4.1. Depending on the version, the displayed contents and screen design may differ.

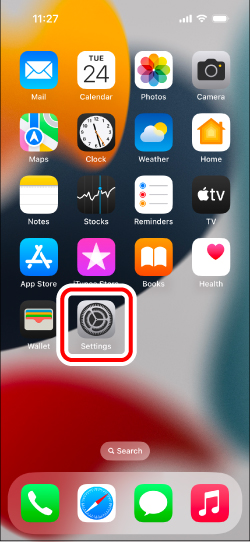

1) Select “Settings” from the home page.

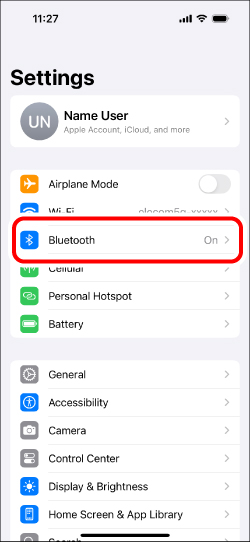

2) Tap on “Bluetooth”.

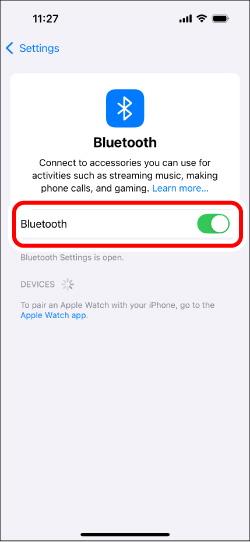

3) Turn “Bluetooth” ON.

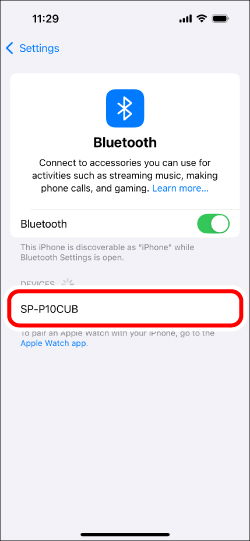

4) Tap on “SP-P10CUB” when it is detected under “DEVICES”.
Pairing begins.
5) "Connected" will be displayed.
6) Once the LED light of this product lights up a constant blue, pairing is complete.
The voice guidance will announce “Bluetooth connected”.
You can now use this product.
1. Enable the pairing mode
Pairing involves registering Bluetooth devices (in this case, this product and an Android device) with each other, and authorizing a connection between them.
1) Connect the USB Type-C plug of the USB cable that comes with this product into your computer's USB Type-C port or into your USB AC adaptor.
・ If connecting to your computer's USB Type-C port
If your computer does not have a USB Type-C port, you can use the included USB-A adaptor to connect to the USB-A port instead.
・ If connecting to a USB AC adaptor
2) Hold down the power button of the controller for 2 seconds to power the product ON.
・ If connecting to a USB AC adaptor
Activates in Bluetooth mode. The LED light will slowly blink blue (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “Pairing”. Please proceed to step 4).
・ If connected to your computer's USB Type-C port
Activates in USB cable mode. There will be blinking (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “USB Cable”.
3) Hold down the power button of the controller for 2 seconds.
It will switch to Bluetooth mode. The LED light will slowly blink blue (once every 3 seconds), then the voice guidance will announce “Mode Change”, followed by “Pairing”.
4) Enter Bluetooth pairing mode.
If a connected device that has already been paired is in the vicinity
If the automatic connection function or the trusted devices setting of a connected device is enabled, it will connect to that device automatically.
The LED light will blink blue slowly (once every 3 seconds).
The voice guidance will announce “Bluetooth Connected”.
2. Pairing with an Android device.
Instructions for Pixel 6a (Android 14) are as follows. Depending on the version and manufacturer, the displayed contents and screen design may differ.
1) Swipe from the bottom to the top of the screen on the home screen to bring up the list of applications.

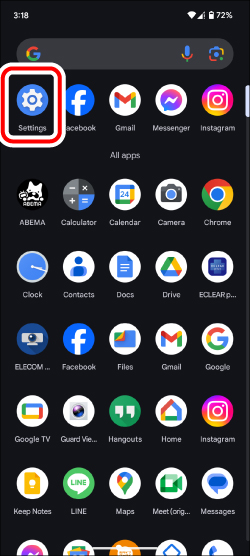

2) Tap on “Settings”.

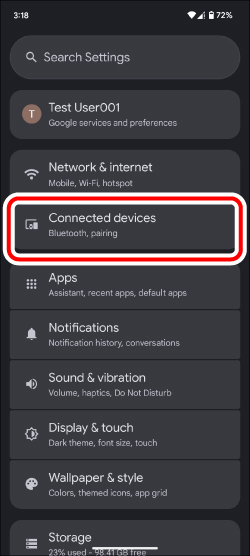

3) Select “Connected devices”.
4) Tap on “Connection preferences”.

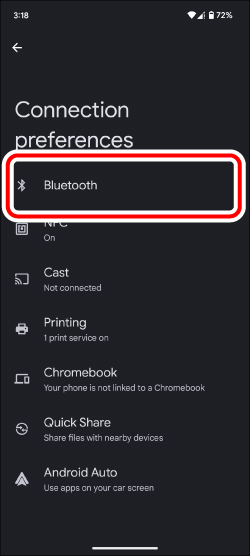

5) Tap on “Bluetooth”.

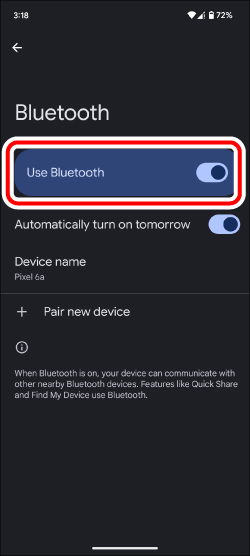

6) Turn “Use Bluetooth” ON.

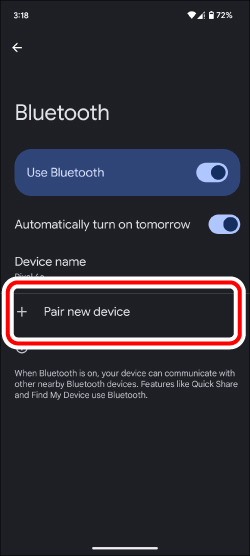

7) Select “Pair new device”

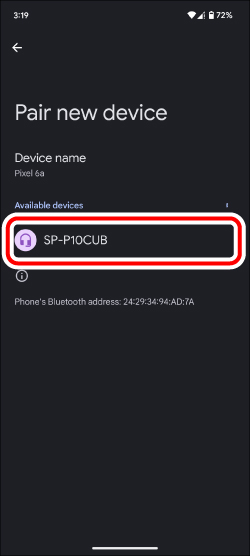

8) Tap on “SP-P10CUB” when it is detected under “Available devices”.

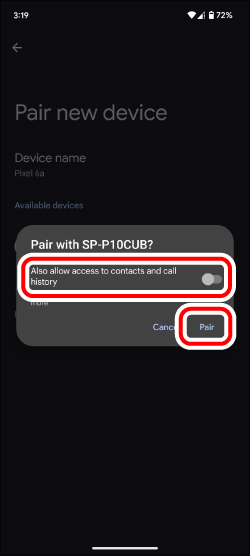

9) While “Also allow access to contacts and call history” is set to OFF, tap “Pair”.
Pairing begins.
10) Once the LED light of this product lights up a constant blue, pairing is complete.
The voice guidance will announce “Bluetooth connected”.

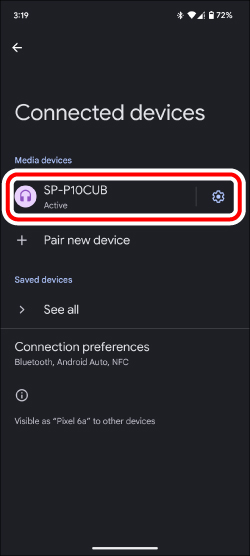

11) This product is now added to “Media devices”.
You can now use this product.
1) Hold down the power button of the controller for 2 seconds.
Activates in USB cable mode. The LED light will slowly blink red (once every 3 seconds), then the voice guidance will announce “Power On”, followed by “USB Cable”.
1) Hold down the power button of the controller for at least 4 seconds.
2) The light will turn OFF and the power supply will be turned OFF as well.
The voice guidance will announce “Power OFF”.
Even after turning the power OFF, the previous connection mode will be remembered until the USB cable is unplugged from your computer.
Unplugging and plugging in the USB cable will cause it to reset to USB cable mode.
1) Hold down the power button of the controller for at least 2 seconds while the power is ON.
2) The connection mode will change every time you hold down the power button for at least 2 seconds.
Please change to Aux mode after connecting the ⌀3.5 mm mini plug cable.
The following operations are available while playing music.
Play/Pause
Press the power button of the controller.
Volume can be adjusted during audio or music playback.
This functionality may not be available depending on the connected device.
If you cannot obtain the desired volume even by setting the volume to maximum, adjust the volume of the connected device.
Volume up
The volume will increase each time you press the controller's Volume Up button (+).
Volume down
The volume will decrease each time you press the controller's Volume Down button (-).
How to connect |
Display name |
|---|---|
Bluetooth mode |
Headphones (SP-P10CUB) |
USB cable mode |
Speakers (USBAudio2.0) |
AUX mode |
Headphones (Connected device name) |
You may be able to improve the situation with the following method.
Connect the Bluetooth adaptor to another USB port away from other USB3.0 devices that are in use simultaneously.
Connect the Bluetooth adaptor to a USB 2.0 hub or to an extension cable.
In Windows®, in order to reduce power consumption depending on the PC, the power of the product to be connected to the USB is set to turn off automatically.
You can change this setting in the following ways:
■ For Windows® 11
1) Click “Start” and then “All”.
2) Click “Windows Tools”.
The “Windows Tools” screen will appear.
3) Double-click ”Control Panel”.

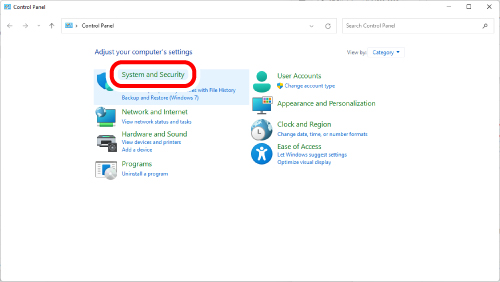

4) Click “System and Security”.

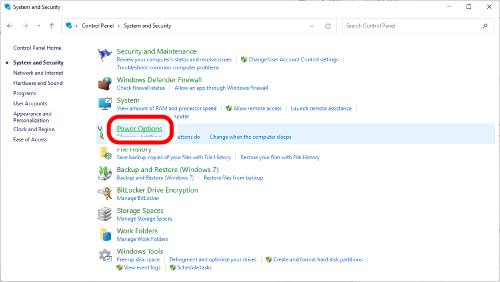

5) Click “Power Options”.
For Power Options settings, please refer to step 2 and beyond when using “For Windows® 10”.
■ For Windows® 10
1) Right-click the Start button at the bottom left of the screen, click “Power Options”, and then click “Additional power settings” under “Related settings” on the right side of the “Power & sleep” screen.

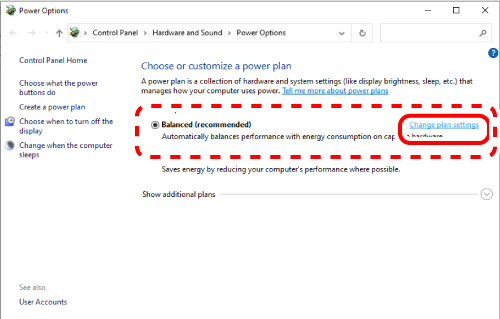

2) Click “Change plan settings” on the right side of the item selected in “Power Plan”.

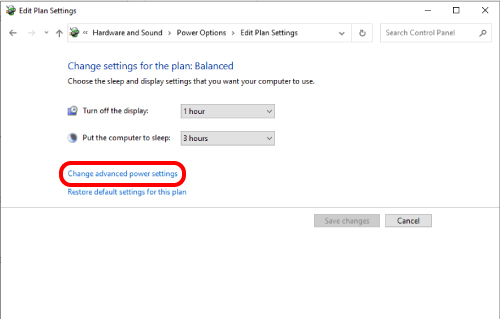

3) On the “Edit Plan Settings” screen, click “Change advanced power settings”.
4) On the “Power Options” screen, click the “+” mark in “USB settings” from the list, and then click the “+” mark in “USB selective suspend setting”.
The items displayed in the list on the “Power Options” screen may differ depending on the computer you are using. If “USB selective suspend setting” is not displayed, the setting cannot be changed.
5) In the dropdown next to “Setting”, select “Disabled”.
If you are using a laptop, there are two items instead of “Settings”: “On battery” and “Plugged in”. In that case, please set the “Plugged in” setting to “Disabled”.
6) Click “OK” to confirm the settings.
7) Click the “×” (close) in the upper right corner to close “Edit Plan Settings”.
