Wireless Trackball Mouse
M-IPT10MRSA series
User Manual

Compliant model: MIPT10MR, MGR10

Precautions

This manual describes the important precautions you should take for safe operation of this product.
Observe these precautions carefully to avoid personal injury, damage, fire, and other problems.

Meaning of symbols

WARNING

Failure to observe precautions carries the possibility of serious personal injury or death due to fire, electric shock, or other causes.

CAUTION

Failure to observe precautions may result in personal injury due to electric shock or other causes, and may damage other equipment.

Prohibited action

Mandatory action

Situation that needs attention

Notes and reference information

WARNING

If a foreign object (water, metal chips) enters this product, stop using immediately and remove the batteries.
Continuing to use the product as it is may cause a fire or an electric shock.

If this product behaves abnormally, such as by generating heat or smoke, or giving off strange smells, cease usage immediately and shut down the connected device. After confirming that the product is not generating heat that will cause burns, remove the batteries from the product. Afterwards, please contact your dealer.
Continuing to use the product as it is may cause a fire or an electric shock.

Please do not drop or hit this product.
In the event that the product is damaged, cease usage immediately. Turn OFF the power and remove the batteries. Afterwards, please contact your dealer.
Fires or electric shocks may occur if this product is used when damaged.

Do not attempt to disassemble, modify, or repair this product.
Doing so may cause a fire, electric shock, or product damage.
Such malfunctions are not covered under warranty.

Do not put this product in fire.
Breakage may cause fire or injury.

Please do not insert or pull out the receiver unit with wet hands. In addition, do not modify or forcibly bend the product.
It can cause a fire or electric shock.

The receiver unit presents a swallowing hazard for children, so be sure to store it in a place out of the reach of children.

CAUTION

Do not place this product in any of the following environments:

  • In a car exposed to sunlight or a place exposed to direct sunlight.
  • In a place that becomes hot, such as around a heater.
  • In a moist place or a place where condensation may occur.
  • In an uneven place or a place exposed to vibration.
  • In a place where a magnetic field is generated (such as near a magnet.)
  • In a dusty place.

This product does not have a waterproof structure. Use or store in a place not exposed to liquids such as water.
Any liquid such as rain, water spray, juice, coffee, steam, and sweat, can cause this product to breakdown.

  • Only use this trackball with PCs, smartphones, tablets, and video game systems.
  • Do not use this product with any device that may be significantly affected in the case of this product malfunctioning.
  • When you no longer need to use this product and the batteries, be sure to dispose of them in accordance with the local ordinances and laws of your area.

Batteries

CAUTION

Please use either AA alkaline batteries, AA manganese batteries or the separately sold battery pack.
Rechargeable dry cell batteries such as nickel-metal hydride batteries are not supported.

When not using this product for long periods of time, remove the batteries.
Not removing them may cause leakage or malfunction.

Cleaning the Product

If this product becomes dirty, wipe it with a soft, dry cloth.

Using a volatile liquid such as paint thinner, benzene or alcohol can affect the material quality and/or discolor this product.

Please note the following for disinfection.

Gently soak a cleaning cloth, such as a microfiber cloth, in the disinfectant solution. Ensure there are no loose droplets and gently wipe the product using the cloth.
After wiping, dry thoroughly and wipe off any residual liquid.

*Do not spray any liquid onto the product directly. Doing so can cause electric malfunctions.

IMPORTANT

Do not spray any liquid onto the product directly.
Not doing so can cause malfunctions.

Do not use organic solvents or ultraviolet lights.
Usage can result in deterioration of the housing components or paints, which can cause damage to the exterior.

We recommend using disposable gloves.

When using any alcohol-based products, please check that it is appropriate for the specific purpose and that it is used properly.

Please note that the customer is fully responsible for repair costs in the event that the product is damaged or operates abnormally due to the disinfection process.

We recommend that you disinfect your hands before and after using PCs and peripheral devices that are used by multiple people in order to prevent the spread of infection through the equipment.

Please make sure to turn off any connected devices.

*When in sleep or hibernation mode, turn off connected devices.

*Please unplug the AC adapter and power cable from the power outlet.

Cautions for Wireless Equipment

This product is a wireless device that can use the entire 2.4 GHz band, and is able to avoid the mobile entity identification device range. The GFSK method is adopted as the radio wave method, and the interference distance is 10 m. The 2.4 GHz band is also used in medical devices, Bluetooth, and wireless LAN devices of the IEEE 802.11b/11g/11n standards.

  • Before using this product, check that there are no other “radio stations”* operating nearby.
  • If electromagnetic interference occurs between this product and other “radio stations”*, use this product in another location or stop using this product.

*Other "radio stations” refer to industrial, scientific and medical devices using the 2.4 GHz band, the same as this product, other radio stations of this type, licensed radio station premises for a mobile object identification system that is used in factory production lines, certain non-licensed low power radio stations, and amateur radio stations.

WARNING

  • Do not use with any equipment that may be significantly affected in the case of this product malfunctioning. There are rare cases in which an external radio wave at the same frequency, or the radio wave emitted from a mobile phone, causes this product to malfunction, slow down, or fail to operate.
  • Do not use this product in places where radio wave usage is prohibited, such as hospitals. Radio waves of this product may affect electronic devices and medical devices (for example pacemakers).
  • Due to the possibility of hindering safe navigation of aircraft, use of wireless trackball in aircraft is prohibited by the Civil Aeronautics Act. Turn off the power of the wireless trackball before boarding and do not use after boarding.

*ELECOM is not liable for any accidents or any indirect or consequential damage incurred due to the failure of this product.

How to use

Items included in this package

The following items are included in this package. Verify the package to ensure all items are accounted for prior to using this product. While every effort has been made to ensure proper packaging, in the event that any shortage or damage is discovered, please contact the retailer where the product was purchased.

Product main unit

  • Trackball main body × 1
  • ELECOM Bridge G1000 USB receiver unit x 1

Consumables

  • Ball (36 mm) × 1
  • Bearing support parts × 3
  • AA alkaline dry cell batteries for confirming operability × 2
  • USB Type-C® to USB-A cable (approx. 1.5 m) × 1

    • The ball, support unit, batteries and receiver unit are already installed on the trackball body. Please remove the battery insulating pull tab before use. Also, take out the receiver unit as needed.

Name and function of each part

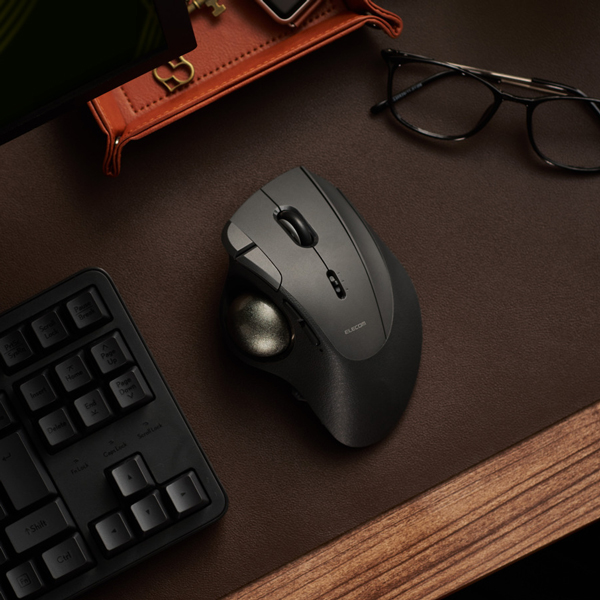

Trackball

① Left button

To left click on your PC.

② Right button

To right click on your PC.

③ Tilt wheel

Rotate forward and backward or click like a button to operate your PC.
You can scroll horizontally by tilting the wheel to the left or right.

You will need to install the “ELECOM Mouse Assistant 6” from our website to use the left and right scroll function on Windows. Refer to “Install ELECOM Mouse Assistant 6”.
The settings made using ELECOM Mouse Assistant 6 are saved in this product.

④ “Back” button

Performs the “Back” function on the Web browser.

⑤ “Forward” button

Performs the “Forward” function on the Web browser.

You will need to install the “ELECOM Mouse Assistant 6” from our website to use the “Back” and “Forward” button on Mac. Refer to “Install ELECOM Mouse Assistant 6”.
The settings made using ELECOM Mouse Assistant 6 are saved in this product.

⑥ Multi-function button 1

⑦ Multi-function button 2

⑧ Multi-function button 3

Functions can be assigned to function buttons 1 to 3. At the time of purchase, no functions have been assigned.

In order to assign functions to the function buttons, download and install “ELECOM Mouse Assistant 6” from our company website. Refer to “Install ELECOM Mouse Assistant 6”.
The settings made using ELECOM Mouse Assistant 6 are saved in this product.

⑨ LED light

  • The status light will light up for a period of time when the mouse is switched ON.
  • When the connection destination is switched using the connection selection dial, this lights up for 3 seconds in the following colors.
    ● Bluetooth connection: blue
    ●USB 2.4GHz wireless connection: orange
    ●USB wired connection: pink
  • Blinks blue while pairing on the Bluetooth connection.
  • Blinks orange while pairing on the USB 2.4GHz wireless connection.
  • LED starts blinking red when the battery level is low.
  • ⑪ The LED light will blink white once when the DPI count is changed using the pointer speed selection speed.
    Low：500 dpi→Mid：1000 dpi→High：1500 dpi→Low：500 dpi→....

⑩ Power switch

Turn the trackball power ON and OFF.

⑪ Pointer speed change switch

DPI count (pointer movement speed) can be changed between 3 stages, Low/Mid/High.

The DPI count is as below.

Low: 500 DPI
Mid: 1000 DPI
High: 1500 DPI

The DPI count number for Low/Mid/High can be changed. In order to do so, download and install “ELECOM Mouse Assistant 6” from our company website. Refer to “Install ELECOM Mouse Assistant 6”.
The settings made using ELECOM Mouse Assistant 6 are saved in this product.

⑫ Connection selection dial

Turn this to switch between devices connected to this product.
Please refer to “Switch connected device”.

⑬ USB Type-C port

  • Connect to your PC by wired connection using the included USB Type-C - USB-A cable.
  • When the separately sold battery pack is stored in the battery compartment, it can be charged by plugging in the included USB Type-C - USB-A cable.

⑭ Pairing button

Pair this product with your PC’s Bluetooth module, Bluetooth adapter, or a receiver unit.

⑮ Status light (white)

  • Blinks when on standby for pairing or during pairing with a Bluetooth connection or a USB 2.4GHz wireless connection.
    Turns off when pairing is complete.

⑯ Ball (circumference: 36mm)

Rotate using your fingertips to move the cursor.

Separately sold ball

  • Replacement 36 mm ball (M-B10SV)

⑰ Support parts (bearings)

Support the ball.
Support parts are consumables. Compatible support parts can be purchased separately to replace existing support parts.

Optional Parts

⑱ Optical sensor (under the ball)

This sensor will detect the trackball’s movements when you move the trackball.

⑲ Ball removal hole

Push the ball out from here to clean the support parts in the housing.

*See "How to clean the trackball” for details.

⑳ Battery cover

Remove this cover and insert batteries or a battery pack (sold separately).

㉑ Battery storage compartment

Holds batteries or a battery pack (sold separately).

Optional Parts

㉒ Battery insulating tab

Remove this tab before using.

㉓ Receiver unit storage part

The receiver unit can be stored here when the trackball is not in use.

Receiver unit

㉔ USB Type-A plug

Connects to the PC USB-A port.

Please purchase another receiver unit if you would like to connect on a USB 2.4GHz wireless connection that is not through the receiver unit that comes with this product.

Switch connected device

You can switch between the following connection destinations using the connection selection dial.

  • 2 Bluetooth devices ( )
  • 1 USB 2.4GHz wireless connection ()
  • 1 USB wired connection ()
  • 2 custom connections ( )

*The custom connections (, ) are connected to Bluetooth connections (Bluetooth 3, Bluetooth 4) by default.

The custom connection can be set to a USB 2.4GHz wireless connection. Download and install “ELECOM Mouse Assistant 6” from our company website to set up custom connections. Refer to “Install ELECOM Mouse Assistant 6”.
The settings made using ELECOM Mouse Assistant 6 are saved in this product.

1) Switch between connections using the dial.
When the connected device is , , , or , the LED light is blue. When the connected device is , the LED light is orange. When the connected device is , the LED light is pink.

When paired with only one device, or Bluetooth device, or , the existing connection will be lost when you switch to an unpaired channel.
Switching back to the channel paired with a connected device will restore the connection.

To pair, please refer to “How to use” → “Connecting and Configuring the Trackball” → (OS specific) → “2. Pairing with a PC”.

Connecting and Configuring the Trackball

Windows®

Using Bluetooth connection

1. Turn the power ON

1) Remove the battery cover.

2) Remove the battery insulating tab.

3) Push the battery back into place if it comes out of the battery storage compartment.

4) Put the battery cover back on.

5) Slide the power switch to the ON position.

*When the battery level is running low, the LED light will blink red slowly for a period of time.

Power-saving mode

When the trackball is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Moving the trackball restores it from energy saving mode.

*For two to three seconds after restoring from energy saving mode, trackball operation may be unstable.

Replacing the batteries...

1) Remove the battery cover.

2) Remove the battery.

3) Insert the batteries according to the positive (+) and negative (-) marks indicated in the battery compartment.

  • Insert the batteries in the correct positive (+) and negative (-) polarity direction.
  • Do not use batteries of different types or use a mixture of old and new batteries. The batteries may leak and cause malfunction.

4) Replace the battery cover.

This product can be charged using the included USB Type-C - USB-A cable when the separately sold battery pack is inserted into the battery compartment.

Please refer to “Charging the battery pack” to charge the battery pack.

2. Pairing with a PC

  • Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them.
  • This section covers Windows standard Bluetooth functions. Depending on your device or Bluetooth adaptor, unique Bluetooth functions may be used. Please read the respective manuals for each function.
  • Use your current mouse or the touchpad on your device to operate your device until pairing is complete.
  • The following instructions are for Windows 11 (23H2).

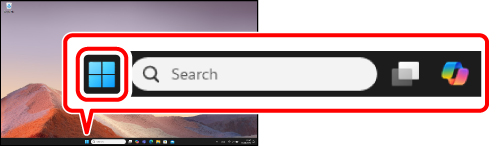

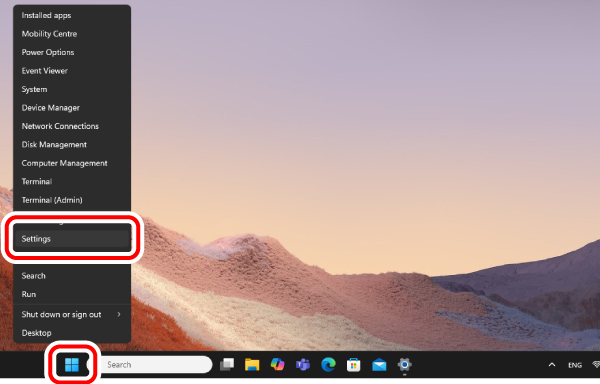

1) Right click on “Start” on the bottom of the screen and then, select “Settings”.

The “Settings” page will appear.

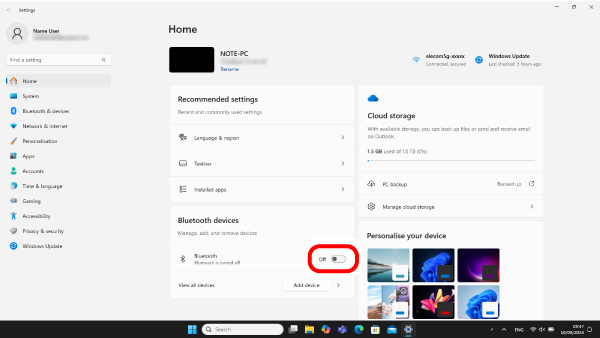

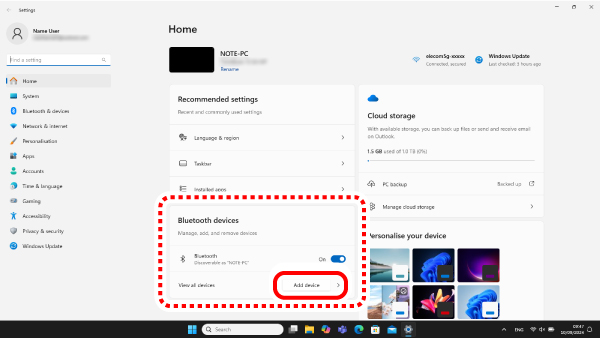

2) Under "Home”, select "Add device” under "Bluetooth devices”.

The “Add a device” page will appear.

If “Bluetooth” is off, turn it on.

3) Turn the connection selection dial to , , or to select the connection destination.

  • You can register up to 4 Bluetooth® devices with the custom connections.
  • The selected connected Bluetooth device will be registered under your paired devices.

Please refer to “Switch connected device” to switch between connected devices.

4) Click “Bluetooth”.

5) When the add device screen is displayed, hold down the pairing button on the bottom for 3-4 seconds.

The pairing mode is entered, and the LED light on the side (blue) and the status light (white) on the bottom will blink slowly.

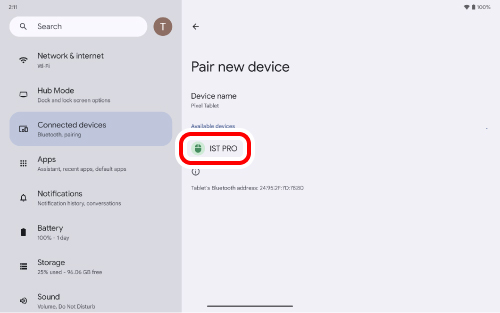

6) Select “IST PRO”.

Pairing begins.

7) When the message changes to “Your device is ready to go!”, select “Done”.

When pairing is complete, the status light (white) on the bottom will blink quickly then stop. The LED light on the side also lights up blue for 3 seconds.

8) Pairing is complete when this product is added to “Bluetooth devices” and the status is “Connected”.

You can now use the trackball.

When using USB 2.4GHz wireless connection

1. Turn the power ON

1) Remove the battery cover.

2) Remove the battery insulating tab.

3) Push the battery back into place if it comes out of the battery storage compartment.

4) Put the battery cover back on.

5) Remove the receiver unit.

6) Slide the power switch to the ON position.

*When the battery level is running low, the LED light will blink red slowly for a period of time.

Power-saving mode

When the trackball is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Moving the trackball restores it from energy saving mode.

*For two to three seconds after restoring from energy saving mode, trackball operation may be unstable.

Replacing the batteries...

1) Remove the battery cover.

2) Remove the batteries.

3) Insert the batteries according to the positive (+) and negative (-) marks indicated in the battery compartment.

  • Insert the batteries in the correct positive (+) and negative (-) polarity direction.
  • Do not use batteries of different types or use a mixture of old and new batteries. The batteries may leak and cause malfunction.

4) Replace the battery cover.

This product can be charged using the included USB Type-C - USB-A cable when the separately sold battery pack is inserted into the battery compartment.

Please refer to “Charging the battery pack” to charge the battery pack.

2. Connect to a PC

1) Start up your PC.

Please wait until the PC has started up and can be operated.

2) Insert the receiver unit into the PC's USB-A port.

You may use any USB-A port.

  • Ensure that the connector is correctly oriented to the port.
  • If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury.
  • Do not touch the terminal portion of the USB connector.

3) Turn the connection selection dial to to select the connection destination.

Please refer to “Switch connected device” to switch between connected devices.

When removing the receiver unit

This product supports hot plugging. You can remove the receiver unit even when the PC is running.

4) The driver is automatically installed and the trackball can be used.

The LED lights up orange for 3 seconds.

You can now use the trackball.

Using USB wired connection

Connecting to a PC

1) Plug the Type-C connector of the included USB Type-C - USB-A cable to the USB Type-C port of this product.

2) Start up your PC.

Please wait until the PC has started up and can be operated.

3) Plug the USB-A connector of the USB Type-C - USB-A cable into the USB-A port of the PC.

You may use any USB-A port.

  • Do not pull or bend the cable using excessive force. A fire or electric shock may result from broken wires.
  • Ensure that the connector is correctly oriented to the port.
  • If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury.
  • Do not touch the terminal portion of the USB connector.

4) Turn the connection selection dial to to select the connection destination.

Please refer to “Switch connected device” to switch between connected devices.

To remove the trackball

This product supports hot plugging. The trackball may be removed while your PC is in operation.

5) The driver is automatically installed and the trackball can be used.

The LED lights up pink for 3 seconds.

You can now use the trackball.

By downloading and installing the "ELECOM Mouse Assistant 6” from our company website, settings such custom connections, DPI switching, and function assignment can be performed. Please proceed to “Install ELECOM Mouse Assistant 6”.

Change the mouse pointer speed

Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow.

■ For Windows 11

1) Click on “Start” on the bottom of the screen and select “Settings”.

The “Settings” page will appear.

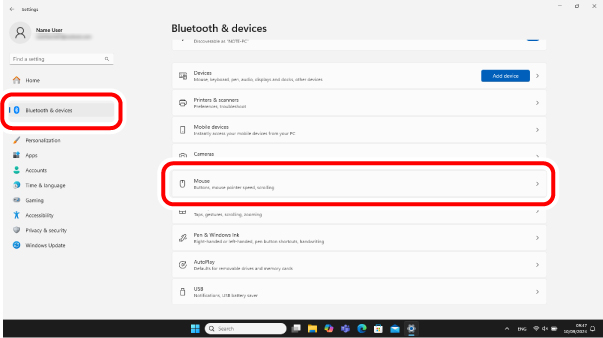

2) Select “Bluetooth & devices” and then “Mouse”.

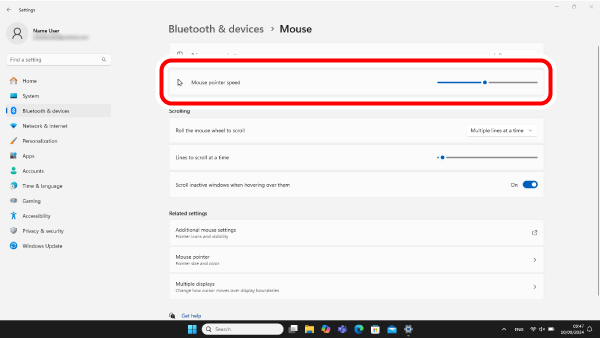

3) Adjust the “Mouse pointer speed” slider bar to adjust the mouse pointer movement speed.

■ For Windows 10

1) Open “Mouse” properties.

From the start menu, select the Settings icon, select “Devices” → “Mouse”, then select “Additional mouse options” under “Related Settings”.

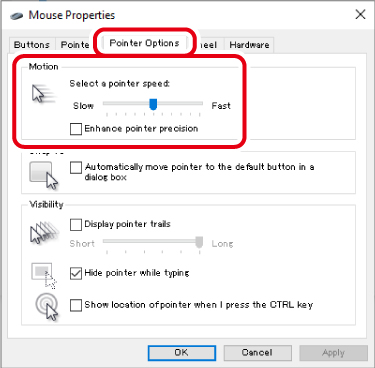

2) Select the “Pointer Options” tab.

3) Adjust the “Select a pointer speed” slider bar to adjust the mouse pointer movement speed.

Change the number of lines scrolled in one wheel turn

■ For Windows 11

1) Click on “Start” on the bottom of the screen and select “Settings”.

The “Settings” page will appear.

2) Select “Bluetooth & devices” and then “Mouse”.

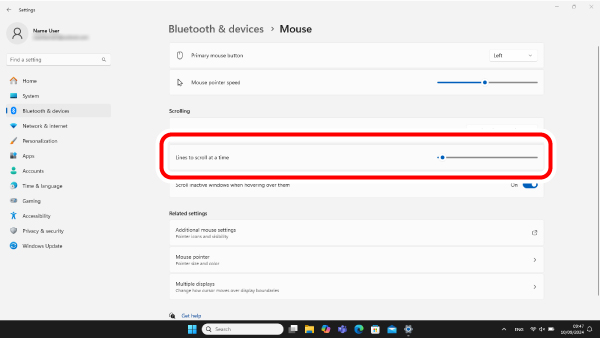

3) Adjust the “Lines to scroll at a time” slider bar to adjust the number of lines per scroll.

■ For Windows 10

1) Open “Mouse” properties.

From the start menu, select the Settings icon, select “Devices” → “Mouse”, then select “Additional mouse options” under “Related Settings”.

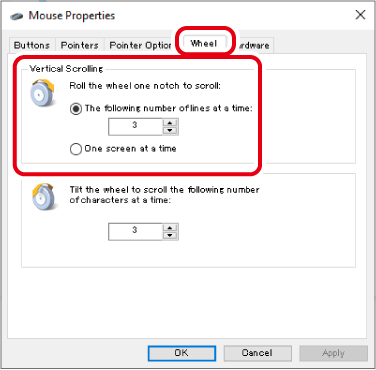

2) Select the “Wheel” tab.

3) Change the value of “The following number of lines at a time” under “Roll the wheel one notch to scroll”

Mac

Using Bluetooth connection

1. Turn the power ON

1) Remove the battery cover.

2) Remove the battery insulating tab.

3) Push the battery back into place if it comes out of the battery storage compartment.

4) Put the battery cover back on.

5) Slide the power switch to the ON position.

*When the battery level is running low, the LED light will blink red slowly for a period of time.

Power-saving mode

When the trackball is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Moving the trackball restores it from energy saving mode.

*For two to three seconds after restoring from energy saving mode, trackball operation may be unstable.

Replacing the batteries...

1) Remove the battery cover.

2) Remove the batteries.

3) Insert the batteries according to the positive (+) and negative (-) marks indicated in the battery compartment.

  • Insert the batteries in the correct positive (+) and negative (-) polarity direction.
  • Do not use batteries of different types or use a mixture of old and new batteries. The batteries may leak and cause malfunction.

4) Replace the battery cover.

This product can be charged using the included USB Type-C - USB-A cable when the separately sold battery pack is inserted into the battery compartment.

Please refer to “Charging the battery pack” to charge the battery pack.

2. Pairing with a PC

  • Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them.
  • This section covers macOS standard Bluetooth functions. Depending on your device or Bluetooth adaptor, unique Bluetooth functions may be used. Please read the respective manuals for each function.
  • Use your current mouse or the touchpad on your device to operate your device until pairing is complete.
  • The following instructions are for macOS Sequoia (15).

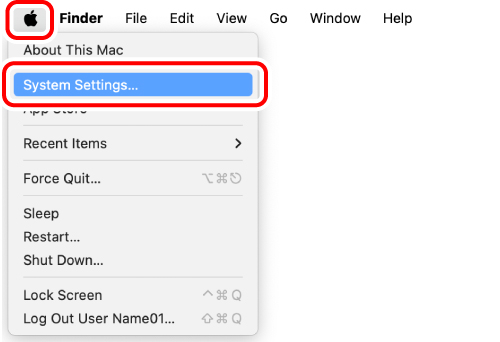

1) From the Apple menu, select “System Settings...”

The System Settings window will appear.

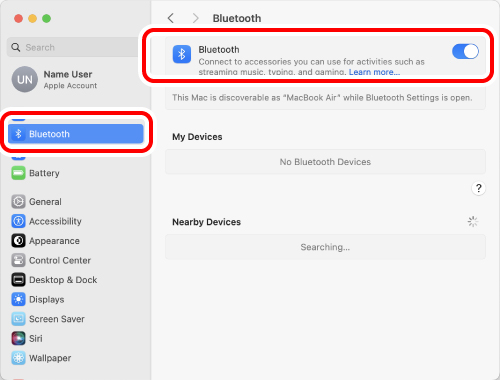

2) Click on “Bluetooth” to turn on “Bluetooth”.

The “Bluetooth” system settings page will appear.

3) Turn the connection selection dial to , , or to select the connection destination.

  • You can register up to 4 Bluetooth® devices with the custom connections.
  • The selected connected Bluetooth device will be registered under your paired devices.

Please refer to “Switch connected device” to switch between connected devices.

4) During the device search, hold down the pairing button on the bottom for 3-4 seconds.

The pairing mode is entered, and the LED light on the side (blue) and the status light (white) on the bottom will blink slowly.

5) When "IST PRO” is detected under "Nearby Devices”, click “Connect”.

Pairing begins.

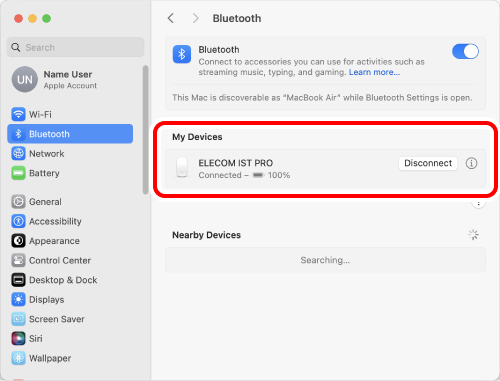

6) Pairing is complete when the status of “ELECOM IST PRO” changes to “Connected”.

When pairing is complete, the status light (white) on the bottom will blink quickly then stop. The LED light on the side also lights up blue for 3 seconds.

You can now use the trackball.

When using USB 2.4GHz wireless connection

1. Turn the power ON

1) Remove the battery cover.

2) Remove the battery insulating tab.

3) Push the battery back into place if it comes out of the battery storage compartment.

4) Put the battery cover back on.

5) Remove the receiver unit.

6) Slide the power switch to the ON position.

*When the battery level is running low, the LED light will blink red slowly for a period of time.

Power-saving mode

When the trackball is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Moving the trackball restores it from energy saving mode.

*For two to three seconds after restoring from energy saving mode, trackball operation may be unstable.

Replacing the batteries...

1) Remove the battery cover.

2) Remove the batteries.

3) Insert the batteries according to the positive (+) and negative (-) marks indicated in the battery compartment.

  • Insert the batteries in the correct positive (+) and negative (-) polarity direction.
  • Do not use batteries of different types or use a mixture of old and new batteries. The batteries may leak and cause malfunction.

4) Replace the battery cover.

This product can be charged using the included USB Type-C - USB-A cable when the separately sold battery pack is inserted into the battery compartment.

Please refer to “Charging the battery pack” to charge the battery pack.

2. Connect to a PC

1) Start up your PC.

Please wait until the PC has started up and can be operated.

2) Insert the receiver unit into the PC's USB-A port.

You may use any USB-A port.

  • For terminals that do not have a USB-A port, such as a MacBook, use the USB Type-C hub.

  • Ensure that the connector is correctly oriented to the port.
  • If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury.
  • Do not touch the terminal portion of the USB connector.

3) Turn the connection selection dial to to select the connection destination.

Please refer to “Switch connected device” to switch between connected devices.

When removing the receiver unit

This product supports hot plugging. You can remove the receiver unit even when the PC is running.

4) The driver is automatically installed and the trackball can be used.

The LED lights up orange for 3 seconds.

You can now use the trackball.

Using USB wired connection

Connecting to a PC

1) Plug the Type-C connector of the included USB Type-C - USB-A cable to the USB Type-C port of this product.

2) Start up your PC.

Please wait until the PC has started up and can be operated.

3) Plug the USB-A connector of the USB Type-C - USB-A cable into the USB-A port of the PC.

You may use any USB-A port.

  • For terminals that do not have a USB-A port, such as a MacBook, use the USB Type-C hub.

  • Do not pull or bend the cable using excessive force. A fire or electric shock may result from broken wires.
  • Ensure that the connector is correctly oriented to the port.
  • If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury.
  • Do not touch the terminal portion of the USB connector.

4) Turn the connection selection dial to to select the connection destination.

Please refer to “Switch connected device” to switch between connected devices.

To remove the trackball

This product supports hot plugging. The trackball may be removed while your PC is in operation.

5) The driver is automatically installed and the trackball can be used.

The LED lights up pink for 3 seconds.

You can now use the trackball.

By downloading and installing the "ELECOM Mouse Assistant 6” from our company website, settings such custom connections, DPI switching, and function assignment can be performed. Please proceed to “Install ELECOM Mouse Assistant 6”.

Change the mouse pointer speed

Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow.

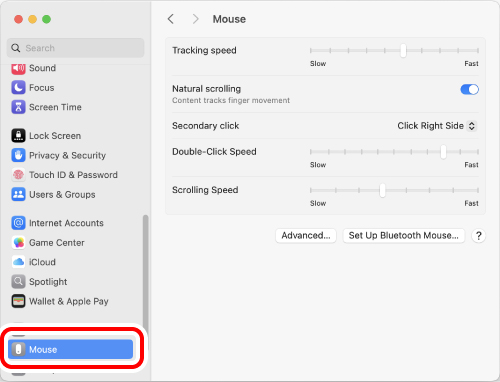

1) Select “Mouse” under “System Settings”.

The “Mouse” settings page will load up.

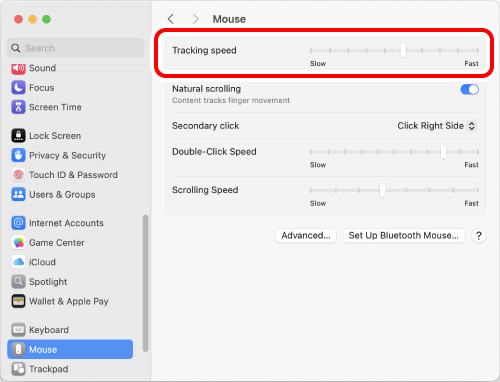

2) Adjust the “Tracking speed” slider to adjust the speed of the mouse pointer.

Unchecking “Natural scrolling” will cause the scroll direction to be reversed.

iPhone, iPad

Using Bluetooth connection

1. Turn the power ON

1) Remove the battery cover.

2) Remove the battery insulating tab.

3) Push the battery back into place if it comes out of the battery storage compartment.

4) Put the battery cover back on.

5) Slide the power switch to the ON position.

*When the battery level is running low, the LED light will blink red slowly for a period of time.

Power-saving mode

When the trackball is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Moving the trackball restores it from energy saving mode.

*For two to three seconds after restoring from energy saving mode, trackball operation may be unstable.

Replacing the batteries...

1) Remove the battery cover.

2) Remove the batteries.

3) Insert the batteries according to the positive (+) and negative (-) marks indicated in the battery compartment.

  • Insert the batteries in the correct positive (+) and negative (-) polarity direction.
  • Do not use batteries of different types or use a mixture of old and new batteries. The batteries may leak and cause malfunction.

4) Replace the battery cover.

This product can be charged using the included USB Type-C - USB-A cable when the separately sold battery pack is inserted into the battery compartment.

Please refer to “Charging the battery pack” to charge the battery pack.

2. Pairing with an iPad or an iPhone

  • Pairing involves registering Bluetooth devices (in this case, this product and an iPad or an iPhone) with each other, and authorizing a connection between them.
  • Tap to operate the iPad or iPhone device until pairing is complete.
  • The following instructions are for iPadOS Ver.18.

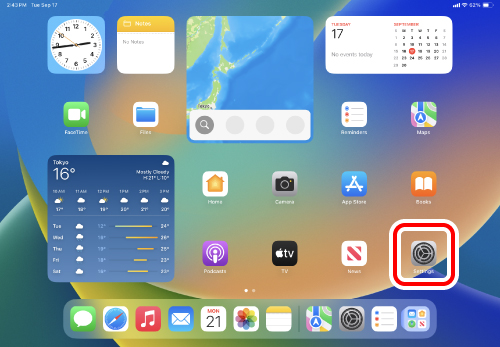

1) Select “Settings” from the home page.

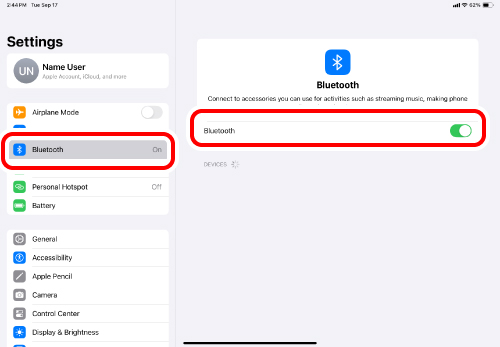

2) Select “Bluetooth” to turn on the “Bluetooth”.

3) Turn the connection selection dial to , , or to select the connection destination.

  • You can register up to 4 Bluetooth® devices with the custom connections.
  • The selected connected Bluetooth device will be registered under your paired devices.

Please refer to “Switch connected device” to switch between connected devices.

4) During the device search, hold down the pairing button on the bottom for 3-4 seconds.

The pairing mode is entered, and the LED light on the side (blue) and the status light (white) on the bottom will blink slowly.

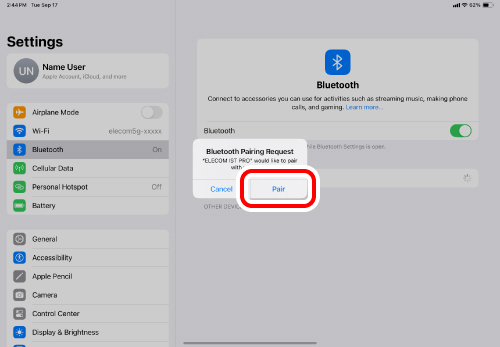

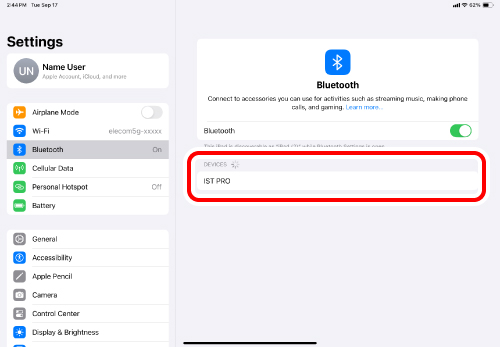

5) Tap on “IST PRO” when it is detected under “DEVICES”.

Pairing begins.

6) When the “Bluetooth Pairing Request” page loads, tap on “Pair”.

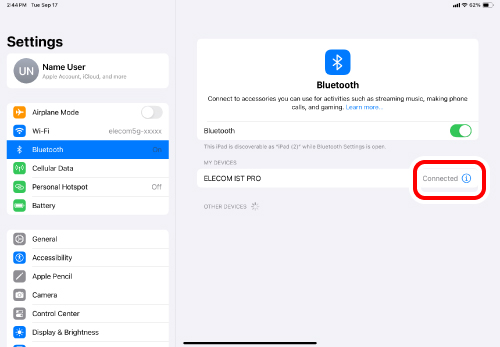

7) You can use the trackball when the status shows "Connected”

When pairing is complete, the status light (white) on the bottom will blink quickly then stop. The LED light on the side also lights up blue for 3 seconds.

You can now use the trackball.

Register custom actions to the buttons.

Only the 2 buttons and the wheel can be used under the initial settings.

  • Button 1: Single-Tap
  • Button 2: Secondary Click

Follow the steps below to assign all other button functions.

1. Turn ON AssistiveTouch.

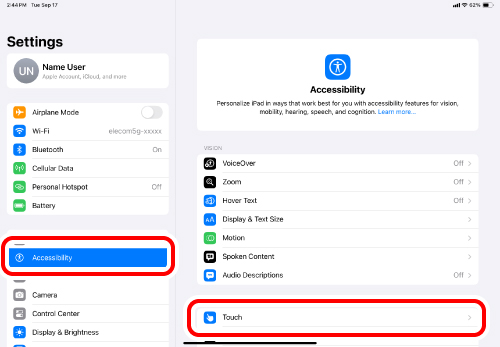

1) Select “Accessibility” under “Settings”.

2) Select “Touch”.

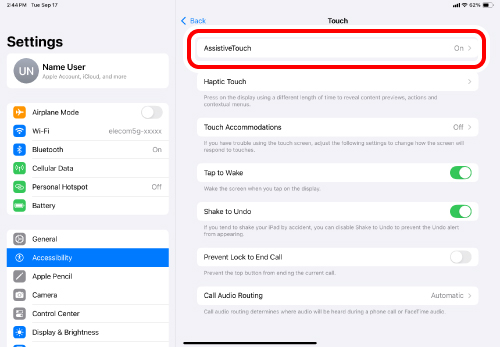

3) Select “AssistiveTouch”.

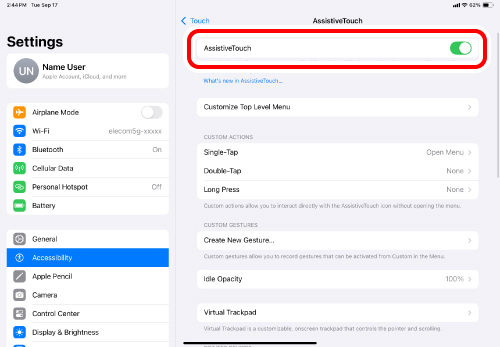

4) Select “AssistiveTouch” to turn ON.

2. Assign custom actions to the buttons.

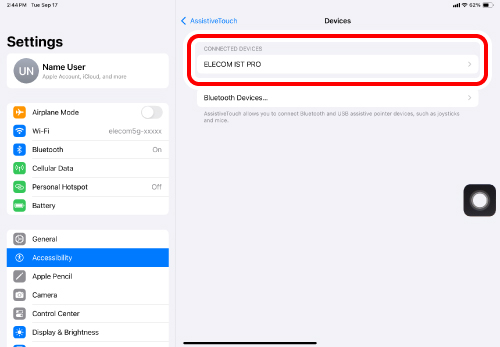

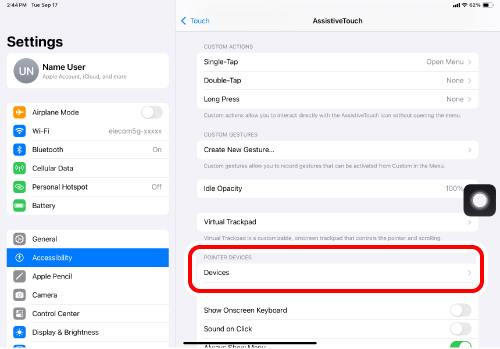

1) Select “Devices” under “POINTER DEVICES”.

2) Tap on “ELECOM IST PRO”.

3) Select “Customize Additional Buttons...”.

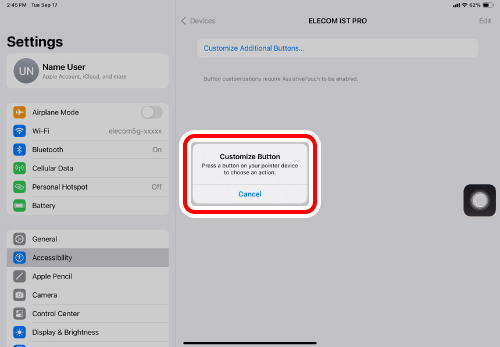

4) When the “Customize Button” page loads, click on the button on the trackball to be added.

*When adding “Button 3”.

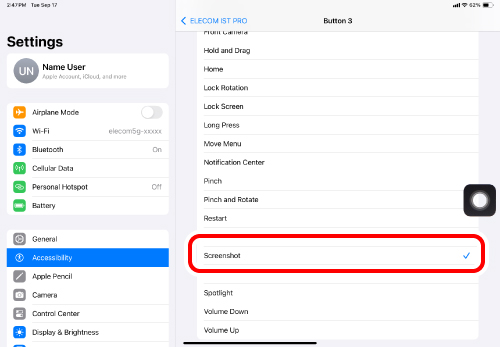

5) A list of all assignable functions will load. Select the desired function to assign.

*When assigning “Screenshot” to “Button 3”.

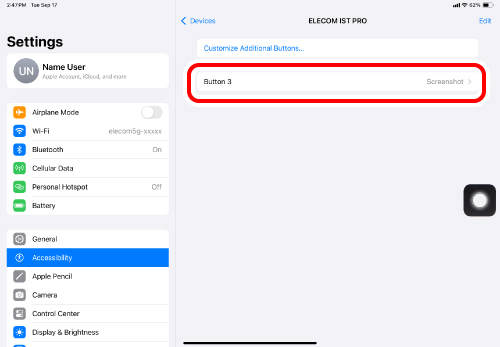

6) A function is assigned to the button. To assign other buttons, repeat the steps above.

When AssistiveTouch is OFF, the Custom Action function is disabled and only the initial right click, left click and wheel scroll functions may be used.

Android

Using Bluetooth connection

1. Turn the power ON

1) Remove the battery cover.

2) Remove the battery insulating tab.

3) Push the battery back into place if it comes out of the battery storage compartment.

4) Put the battery cover back on.

5) Slide the power switch to the ON position.

*When the battery level is running low, the LED light will blink red slowly for a period of time.

Power-saving mode

When the trackball is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Moving the trackball restores it from energy saving mode.

*For two to three seconds after restoring from energy saving mode, trackball operation may be unstable.

Replacing the batteries...

1) Remove the battery cover.

2) Remove the batteries.

3) Insert the batteries according to the positive (+) and negative (-) marks indicated in the battery compartment.

  • Insert the batteries in the correct positive (+) and negative (-) polarity direction.
  • Do not use batteries of different types or use a mixture of old and new batteries. The batteries may leak and cause malfunction.

4) Replace the battery cover.

This product can be charged using the included USB Type-C - USB-A cable when the separately sold battery pack is inserted into the battery compartment.

Please refer to “Charging the battery pack” to charge the battery pack.

2. Pairing with an Android device.

  • Pairing involves registering Bluetooth devices (in this case, this product and an Android device) with each other, and authorizing a connection between them.
  • Tap to operate the Android device until pairing is complete.
  • Instructions for the Pixel Tablet (Android 14) are as follows. There may be differences depending on the OS version or device.

1) Select “Settings” from the home page.

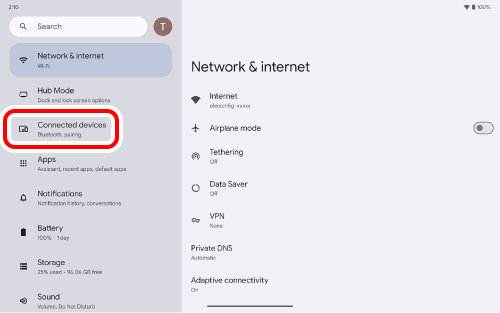

2) Select “Connected devices”.

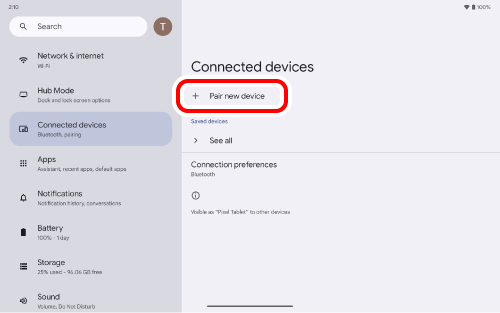

3) Select “Pair new device”

4) Turn the connection selection dial to either , , or to select the connection destination.

  • You can register up to 4 Bluetooth® devices with the custom connections.
  • The selected connected Bluetooth device will be registered under your paired devices.

Please refer to “Switch connected device” to switch between connected devices.

5) Hold down the pairing button on the bottom for around 3-4 seconds.

The pairing mode is entered, and the LED light on the side (blue) and the status light (white) on the bottom will blink slowly.

6) Tap on “IST PRO” under “Available devices”.

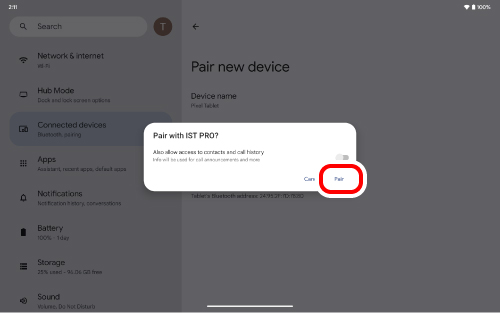

7) Select “Pair”.

Pairing begins.

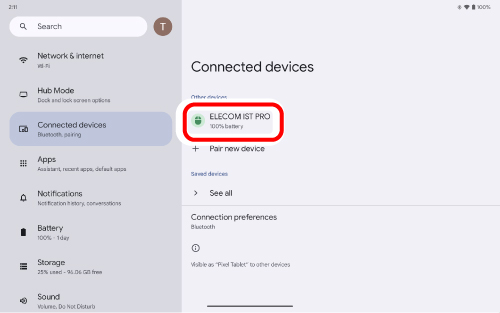

8) Pairing is complete when this product is added to “Other devices”.

When pairing is complete, the status light (white) on the bottom will blink quickly then stop. The LED light on the side also lights up blue for 3 seconds.

You can now use the trackball.

Chrome OS

Using Bluetooth connection

1. Turn the power ON

1) Remove the battery cover.

2) Remove the battery insulating tab.

3) Push the battery back into place if it comes out of the battery storage compartment.

4) Put the battery cover back on.

5) Slide the power switch to the ON position.

*When the battery level is running low, the LED light will blink red slowly for a period of time.

Power-saving mode

When the trackball is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Moving the trackball restores it from energy saving mode.

*For two to three seconds after restoring from energy saving mode, trackball operation may be unstable.

Replacing the batteries...

1) Remove the battery cover.

2) Remove the batteries.

3) Insert the batteries according to the positive (+) and negative (-) marks indicated in the battery compartment.

  • Insert the batteries in the correct positive (+) and negative (-) polarity direction.
  • Do not use batteries of different types or use a mixture of old and new batteries. The batteries may leak and cause malfunction.

4) Replace the battery cover.

This product can be charged using the included USB Type-C - USB-A cable when the separately sold battery pack is inserted into the battery compartment.

Please refer to “Charging the battery pack” to charge the battery pack.

2. Pairing with a PC

  • Pairing involves registering Bluetooth devices (in this case, this product and your device) with each other, and authorizing a connection between them.
  • This section covers Chrome OS standard Bluetooth functions. Depending on your PC, unique Bluetooth functions may be used. Please read the respective manuals for each function.
  • Use your current mouse or the touchpad on your device to operate your device until pairing is complete.
  • The following instructions are for Chrome OS (128.0.6613.133).

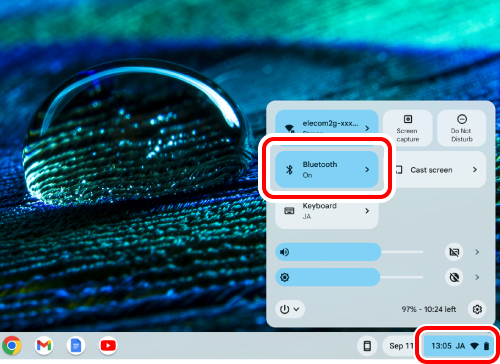

1) Select the battery icon at the bottom right.

2) ClickBluetooth on the Quick Settings panel.

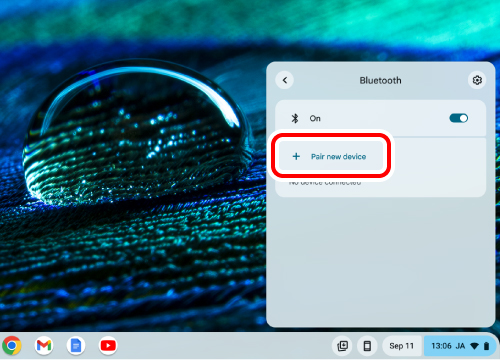

3) Under “Bluetooth”, select “Pair new device”.

4) Turn the connection selection dial to either , , or to select the connection destination.

  • You can register up to 4 Bluetooth® devices with the custom connections.
  • The selected connected Bluetooth device will be registered under your paired devices.

Please refer to “Switch connected device” to switch between connected devices.

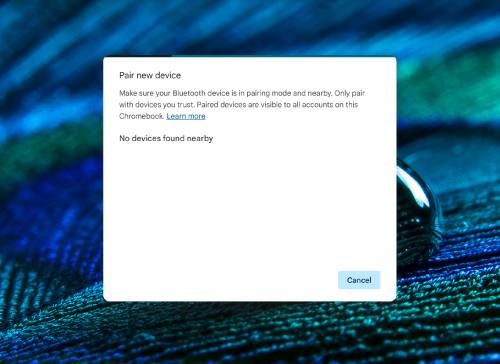

5) During the device search, hold down the pairing button on the bottom for 3-4 seconds.

The pairing mode is entered, and the LED light on the side (blue) and the status light (white) on the bottom will blink slowly.

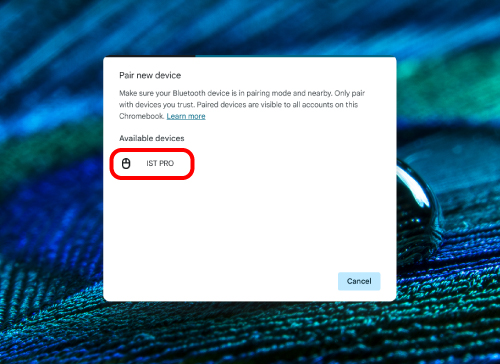

6) Select “IST PRO”.

Pairing begins.

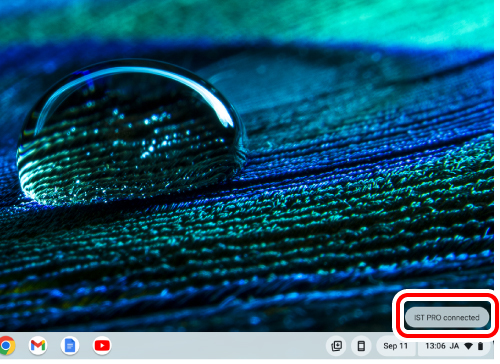

7) "IST PRO connected” will be displayed at the bottom of the screen.

Click “Bluetooth” like in step 2. Pairing is complete when “ELECOM IST PRO” appears under “Previously connected”.

When pairing is complete, the status light (white) on the bottom will blink quickly then stop. The LED light on the side also lights up blue for 3 seconds.

You can now use the trackball.

When using USB 2.4GHz wireless connection

1. Turn the power ON

1) Remove the battery cover.

2) Remove the battery insulating tab.

3) Push the battery back into place if it comes out of the battery storage compartment.

4) Put the battery cover back on.

5) Remove the receiver unit.

6) Slide the power switch to the ON position.

*When the battery level is running low, the LED light will blink red slowly for a period of time.

Power-saving mode

When the trackball is left untouched for a fixed period of time while the power is ON, it automatically shifts to power-saving mode.
Moving the trackball restores it from energy saving mode.

*For two to three seconds after restoring from energy saving mode, trackball operation may be unstable.

Replacing the batteries...

1) Remove the battery cover.

2) Remove the batteries.

3) Insert the batteries according to the positive (+) and negative (-) marks indicated in the battery compartment.

  • Insert the batteries in the correct positive (+) and negative (-) polarity direction.
  • Do not use batteries of different types or use a mixture of old and new batteries. The batteries may leak and cause malfunction.

4) Replace the battery cover.

This product can be charged using the included USB Type-C - USB-A cable when the separately sold battery pack is inserted into the battery compartment.

Please refer to “Charging the battery pack” to charge the battery pack.

2. Connect to a PC

1) Start up your PC.

Please wait until the PC has started up and can be operated.

2) Insert the receiver unit into the PC's USB-A port.

You may use any USB-A port.

  • For devices that do not have a USB-A port, please use a USB Type-C hub.

  • Ensure that the connector is correctly oriented to the port.
  • If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury.
  • Do not touch the terminal portion of the USB connector.

3) Turn the connection selection dial to to select the connection destination.

Please refer to “Switch connected device” to switch between connected devices.

When removing the receiver unit

This product supports hot plugging. You can remove the receiver unit even when the PC is running.

4) The driver is automatically installed and the trackball can be used.

The LED lights up orange for 3 seconds.

You can now use the trackball.

Using USB wired connection

Connecting to a PC

1) Plug the Type-C connector of the included USB Type-C - USB-A cable to the USB Type-C port of this product.

2) Start up your PC.

Please wait until the PC has started up and can be operated.

3) Plug the USB-A connector of the USB Type-C - USB-A cable into the USB-A port of the PC.

You may use any USB-A port.

  • For devices that do not have a USB-A port, please use a USB Type-C hub.

  • Do not pull or bend the cable using excessive force. A fire or electric shock may result from broken wires.
  • Ensure that the connector is correctly oriented to the port.
  • If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury.
  • Do not touch the terminal portion of the USB connector.

4) Turn the connection selection dial to to select the connection destination.

Please refer to “Switch connected device” to switch between connected devices.

To remove the trackball

This product supports hot plugging. The trackball may be removed while your PC is in operation.

5) The driver is automatically installed and the trackball can be used.

The LED lights up pink for 3 seconds.

You can now use the trackball.

Change the mouse pointer speed

Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow.

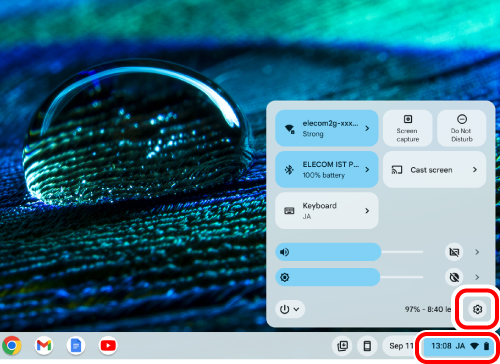

1) Select the battery icon at the bottom right.

2) Select (settings) on the Quick Settings panel.

The settings page will appear.

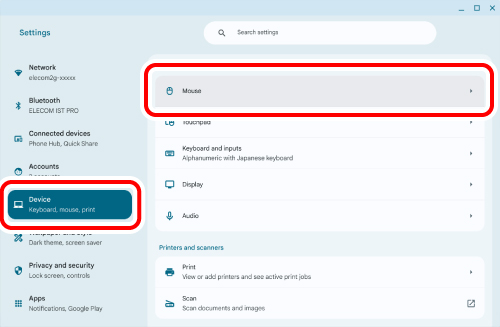

3) Select “Mouse” under “Device”.

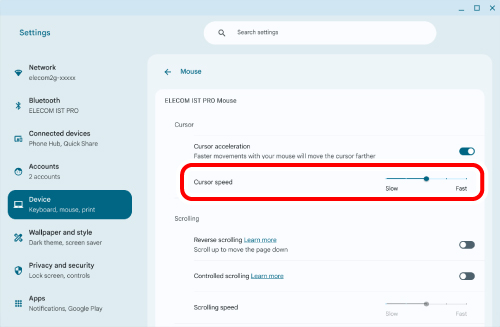

4) Adjust the speed of the mouse pointer using the "Cursor speed” slider of "ELECOM IST PRO”.

Change the number of lines scrolled in one wheel turn

1) Select the battery icon at the bottom right.

2) Select (settings) on the Quick Settings panel.

The settings page will appear.

3) Select “Mouse” under “Device”.

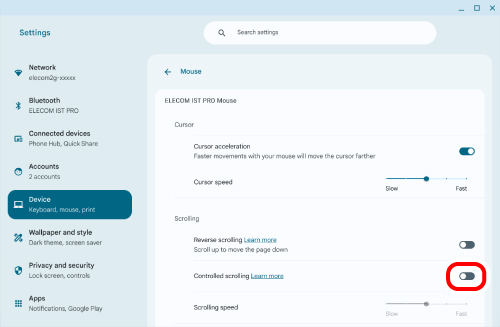

4) If "Controlled scrolling” for this product is disabled, click to enable it.

The display name of this product changes depending on the device to its connection.

  • Bluetooth connection: ELECOM IST PRO Mouse
  • USB 2.4GHz wireless connection: ELECOM ELECOM Bridge G1000 Mouse
  • USB wired connection: ELECOM ELECOM IST PRO Mouse

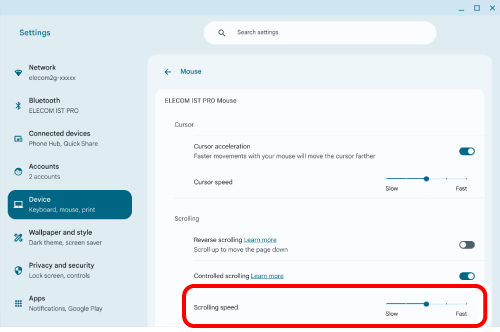

5) Adjust the “Scrolling speed” slider bar for this product to adjust the number of lines per scroll.

Setting Custom 1 and Custom 2 connections

The custom connections ( and ) on the connection selection dial is set to Bluetooth connection by default The custom connections ( and) can be set to a USB 2.4GHz wireless connection.
Download and install “ELECOM Mouse Assistant 6” from our company website to set this up. Refer to “Install ELECOM Mouse Assistant 6”.

■Changing a custom connection to USB 2.4GHz wireless connection

1) and connections can be changed to USB 2.4GHZ wireless connections using ELECOM Mouse Assistant 6.

Please refer to the “ELECOM Mouse Assistant 6” user’s manual for detailed directions for setting up.

2) Turn the connection selection dial to either or to select the connection destination.

3) Please refer to “When using USB 2.4GHz wireless connection” for each OS to connect this product to your device.

■Changing a custom connection to Bluetooth connection from USB 2.4GHz wireless connection

1) and connections can be changed to Bluetooth connections using ELECOM Mouse Assistant 6.

Please refer to the “ELECOM Mouse Assistant 6” user’s manual for detailed directions for setting up.

2) Turn the connection selection dial to either or to select the connection destination.

The selected connected Bluetooth device will be registered under your paired devices.

3) Please refer to “When using Bluetooth connection” for each OS to connect this product to your device.

Charging the battery pack

1) Plug the Type-C connector of the included USB Type-C - USB-A cable to the USB Type-C port of this product.

2) Connect the USB-A side of the included USB Type-C - USB-A cable into the USB-A port of a USB charger.

Connecting to a PC

Connecting to a USB charging adapter

  • For devices that do not have a USB-A port, please use a USB Type-C hub.

  • Ensure that the connector is correctly oriented to the port.
  • If there is strong resistance when inserting, check the shape and orientation of the connector. Forcibly inserting the connector may damage the connector, and there is a risk of injury.
  • Do not touch the terminal portion of the USB connector.

3) Turn on the PC, if it has not been already switched on.

When charging starts, the LED light on the side will turn red. It will turn off when charging is complete.

It takes about 1.5 hours to fully charge this product.
If the LED light does not turn off after the prescribed charging time, remove the included USB Type-C - USB-A cable and stop charging for the moment.
Otherwise, this can cause overheating, rupturing or fires.

4) Remove the included USB Type-C - USB-A cable from this product and your PC.

Install ELECOM Mouse Assistant 6

"ELECOM Mouse Assistant 6” must be installed to change custom connection settings, assign count numbers for Low/Mid/High DPI , and assign functions.

■ Get ELECOM Mouse Assistant 6

Please visit our homepage below and download the latest version of the application.

> The download page is here

Specifications

Connector type

Receiver unit: USB-A plug
Trackball unit: USB Type-C® port

Connection method

Bluetooth® wireless / USB 2.4 GHz wireless / USB wired

Bluetooth standard

Bluetooth 5.3 Class2

Supported profiles

HOGP (HID Over GATT Profile)

Compatible models

WindowsOS, Android, macOS, iOS, iPadOS, ChromeOS devices that support Bluetooth HOGP / WindowsOS, macOS, ChromeOS devices equipped with a USB port.

Supported OS

Windows 11/10, Android 14, macOS Sonoma 14, iOS 17/iPad OS 17, ChromeOS

Communication method

GFSK

Radio frequency

2.4 GHz

Radio wave range

Maximum length approximately 10 m/32.8 ft.
*May vary depending on the environment.

Sensor type

IR LED

Sensor Resolution

500/1000/1500 DPI
*Values between 100 to 12,000 DPI can be set using the dedicated software ELECOM Mouse Assistant 6.

Buttons

10 *including the wheel button and tilt wheel

Number of wheels

1

Ball diameter

approximately 36 mm/1.42 in

Ball support type

Bearing

Receiver unit storage compartment

Supported

Power source

2 AA alkaline dry cell battery or manganese dry cell battery, USB bus power, lithium-ion battery (rechargeable) (battery pack, sold separately: M-BP10)

Polling rate

Maximum 1000 Hz

Battery life

Maximum duration approximately 18 months (estimated operating time when using alkaline batteries)
*May vary depending on the usage conditions.

Cable Length

Approx. 1.5 m / 4.9 ft

External dimensions (main unit)

Approximately W94 × L136 × H56 mm / W3.70 × L5.36 × H2.21 in.

External dimensions (receiver unit)

Approximately W16 × L19 × H9 mm / W0.63 × L0.75 × H0.36 in.

Weight (main unit)

Approx. 158 g / 5.6 oz
*excluding batteries

Mass (receiver unit)

Approximately 2 g / 0.1 oz

Operating environment conditions

Temperature: 5 °C to 40 °C / 41 °F to 104 °F, humidity: 90 % RH (without condensation)

Storage environment conditions

Temperature: -10 °C to 60 °C / 14 °F to 140 °F, humidity: 90 % RH (without condensation)

What's Inside

Trackball unit × 1, ELECOM Bridge G1000 USB receiver × 1, alkaline dry cell battery (for confirming operability) × 2, cable for wired connection [USB Type-C® - USB-A cable (approximately 1.5m)] × 1

Troubleshooting

To disinfect the trackball

IMPORTANT

Do not spray any liquid onto the product directly.
Doing so can cause electric malfunctions.

Never apply hot water.
Doing so can cause electric malfunctions.

Do not use organic solvents or ultraviolet lights.
Usage can result in deterioration of the housing components or paints, which can cause damage to the exterior.

We recommend using disposable gloves.

When using any alcohol-based products, please check that it is appropriate for the specific purpose and that it is used properly.

Please note that the customer is fully responsible for repair costs in the event that the product is damaged or operates abnormally due to the disinfection process.

We recommend that you disinfect your hands before and after using PCs and peripheral devices that are used by multiple people in order to prevent the spread of infection through the equipment.

Gently soak a cleaning cloth, such as a microfiber cloth, in the disinfectant solution. Ensure there are no loose droplets and gently wipe the product using the cloth.
After wiping, dry thoroughly and wipe off any residual liquid.

*Do not spray any liquid onto the product directly. Doing so can cause electric malfunctions.

How to clean the trackball

1) Use a finger (or a pen) to push the ball out from the underside.

2) Use a cotton bud or something similar to clean off the dust accumulated on the contact surfaces of the three support parts.

The optical sensor is a delicate component. Please do not subject the sensor to impact or damage it.

3) Gently wipe off the dirt on the ball with a tissue.

Do not use alcohol, cleaning cloths and other such cleaning tools when cleaning the ball.
The ball may perform poorly if the oil on its surface is removed.

4) Insert the ball into the trackball housing.


The ball may perform poorly if the oil on its surface is inadequate.
Hold and rub the ball in your hand for approximately 30 seconds if it performs poorly.
The oils from your hand should improve its performance.

How to replace support parts

When replacing the support parts, take care not to damage the sensor.

1) Use a finger (or a pen) to push the ball out from the underside.

2) Hold onto the removal tool included with the replacement support part with your fingers and push it into the notch on the sides of the support part until you hear a click.

3) Pull the removal tool hard to remove the support part.

4) Fit the replacement support part into the inner catch.

5) Press the support part in with your finger until you hear a click.

6) Insert the ball into the trackball housing.

If the trackball does not work correctly

Try the following if the trackball operates abnormally.

① Check that the trackball is turned ON.

② Check that the batteries are inserted correctly or that the batteries are not depleted.

  • The protective film may have been left on the battery. Remove the protective film from the battery before reinserting it into the trackball.
  • Ensure that the batteries are inserted with the terminals in the right orientation.
  • The operation will become unstable when the battery level is low. Please refer to “Replacing the batteries... (e.g., when using Bluetooth connection on Windows OS)” and replace the batteries with new ones as soon as possible.
    The batteries included with this product are only for confirming operability. The dry cell batteries will discharge naturally during the distribution process of the product.

*Turning off the power when the trackball is not used for a long period of time can extend the battery life.

③ Check the Bluetooth connection.

  • Check that the Bluetooth function or the Bluetooth adapter on your PC is turned on.
  • Check pairing status to ensure that this product is paired correctly with your PC and that pairing has not been cancelled.

④ Change the position between your PC and the trackball.

This wireless device uses the 2.4 GHz band. Please use the trackball within range of the PC.

Average radio wave range
Non-magnetic surface (such as wooden desks): approximately 10 m
Magnetic surface (such as steel desks): approximately 3 m

*These values were obtained in ELECOM's test environment and are not guaranteed. The 2.4 GHz band signal may be shorter depending on the environment you use it in.

⑤ Reboot the PC.

  • The trackball may become unstable depending on the PC. Please restart the PC.

⑥ Please update your PC’s OS to the latest version.

  • The mouse may become unstable when the PC version is outdated. Please update your PC’s OS to the latest version.

⑦ Update the Bluetooth driver. (If you are using a Windows® PC.)

  • The trackball may not work normally when the PC’s Bluetooth driver version is outdated. Check the manufacturer of the Bluetooth equipment installed on your PC and update the driver.

1) Right click “Start” and open “Device Manager”.

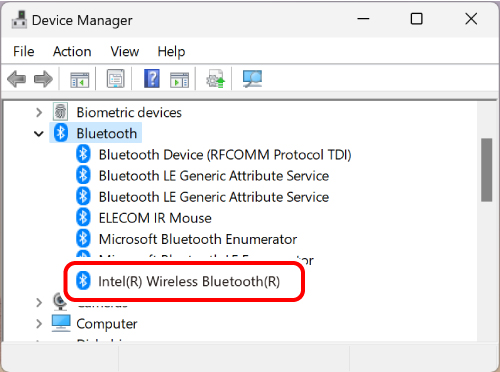

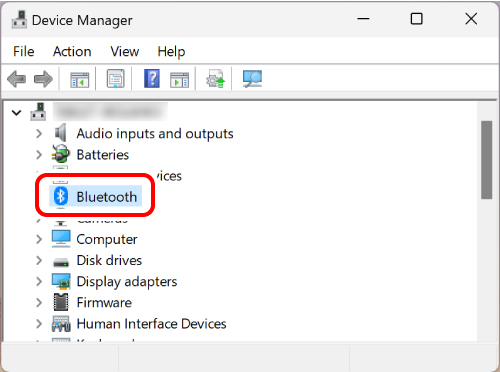

2) Click “Bluetooth”.

3) Check the manufacturer of the Bluetooth function installed on your PC.

The following steps illustrate the procedure when the Bluetooth function is manufactured by Intel® Corporation.
For other manufacturers or if you do not know the manufacturer, check the user manual of your PC or contact the manufacturer of your PC for instructions on how to update the Bluetooth driver.

4) Search for “Intel® Driver & Support Assistant” on your browser and download the installer from Intel’s website.

5) Follow the instructions of the downloaded installer to install “Intel® Driver & Support Assistant”.

6) Click “Start” and then “All apps”.

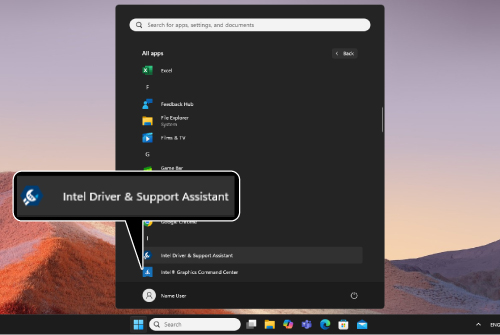

7) Click “Intel Driver & Support Assistant”.

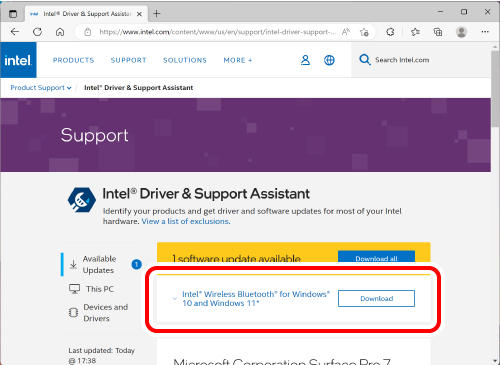

8) The Intel support page will automatically open on your browser and a list of drivers and software updates that can be used on your PC will be displayed.

9) Download “Intel® Wireless Bluetooth” from the list if available.

*The display on your browser may change depending on your PC environment and support page updates.

10) Follow the instructions of the downloaded installer to install the Bluetooth driver.
With this, the Bluetooth driver is updated.

⑧ When using the receiver or USB-connection Bluetooth receiver, change the receiver connection.

Depending on the specifications of the PC's USB port or USB hub, other USB 3.0 devices used simultaneously with the trackball may generate noise that can worsen the 2.4 GHz signal in the vicinity.

Examples of USB devices that may degrade the 2.4 GHz band signal

  • USB memory
  • Hard disk or SSD
  • Optical disk drive
  • Card reader / writer
  • LAN adapter
  • Others, all devices communicating data with a PC via USB 3.0.

You may be able to improve the situation with the following method.

Connect the mouse receiver or Bluetooth receiver to another USB port away from other USB3.0 devices that are in use simultaneously.

Connect the mouse receiver or Bluetooth receiver to a USB2.0 hub or to an extension cable.

⑨ Please check power saving settings for the connected device. (If you are using a Windows® PC.)

On Windows, in order to reduce power consumption, depending on the PC, the power of the USB-connected product is set to turn off automatically.
You can change the settings in the following ways:

For Windows 11

1) Click the “Start” button at the bottom of the screen.

2) Click “All apps”.

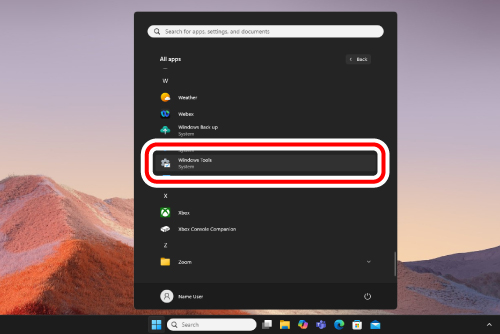

3) Click “Windows Tools”.
The “Windows Tools” screen will appear.

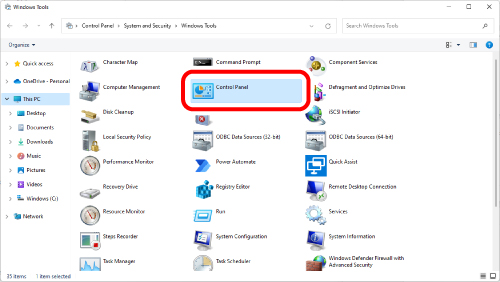

4) Double-click “Control Panel”.

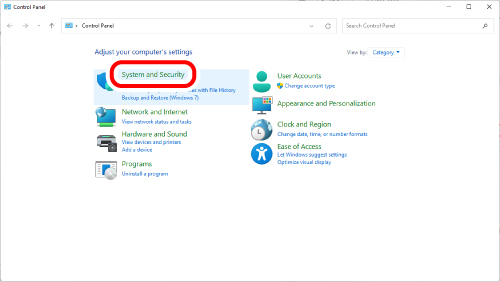

5) Click “System and Security”.

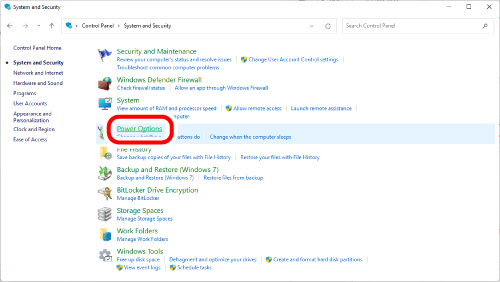

6) Click “Power Options”.

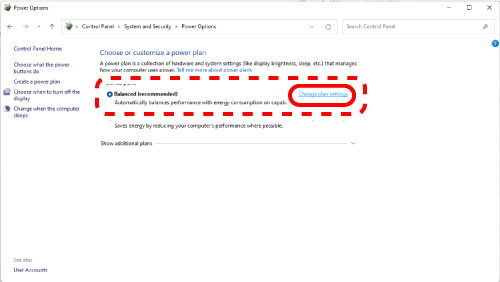

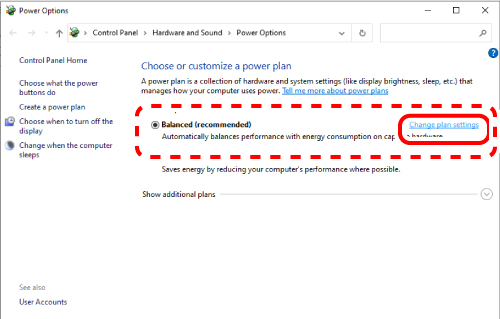

7) Click “Change plan settings” to the right of the item selected in “Power Plan”.

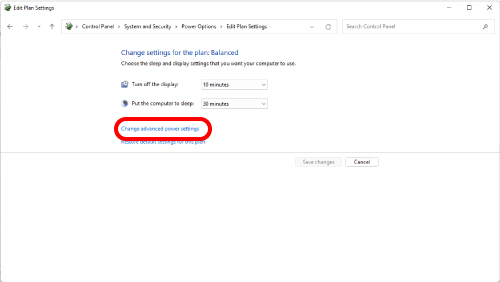

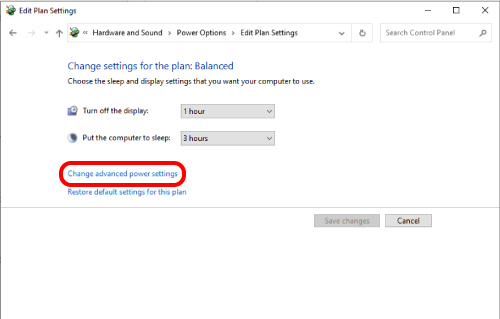

8) On the “Edit Plan Settings” screen, click “Change advanced power settings”.

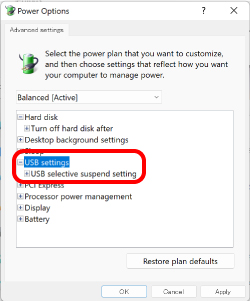

9) On the “Power Options” screen, click the “+” mark in “USB settings” from the list, and then click the “+” mark in “USB selective suspend setting”.

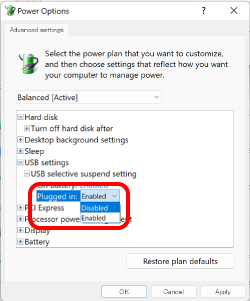

10) In the dropdown next to “Setting”, select ”Disabled”.
If you are using a laptop, there are two items instead of “Settings”: “On battery” and “Plugged in”. In that case, please set the “Plugged in” setting to “Disabled”.

11) Click “OK” to confirm the settings.

12) Click the “×” (close) in the upper right corner to close “Edit Plan Settings”.

For Windows 10

1) Right-click the Start button at the bottom left of the screen, click “Power Options”, and then click “Additional power settings” under “Related settings” on the right side of the “Power & sleep” screen.

2) Click “Change plan settings” on the right side of the item selected in “Power Plan”.

3) On the “Edit Plan Settings” screen, click “Change advanced power settings”.

4) On the “Power Options” screen, click the “+” mark in “USB settings” from the list, and then click the “+” mark in “USB selective suspend setting”.

5) In the dropdown next to “Setting”, select “Disabled”.
If you are using a laptop, there are two items instead of “Settings”: “On battery” and “Plugged in”. In that case, please set the “Plugged in” setting to “Disabled”.

6) Click “OK” to confirm the settings.

7) Click the “×” (close) in the upper right corner to close “Edit Plan Settings”.

Compliance status

Intellectual property rights

  • ELECOM CO., LTD. owns the copyright to this manual.
  • All products and company names on this product and the package are trademarks or registered trademarks of their respective owners.
  • Duplicating and transferring this document in part or whole is prohibited.
  • If you have any concerns or question regarding this manual, please contact the retailer from whom you purchased this product.
  • The specifications and appearance of this product may be changed without prior notice for product improvement purposes.
  • We shall bear no responsibility for any device failure or malfunction of other devices resulting from the use of this product.
  • When exporting this product, check the export regulations for the country of origin.
  • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ELECOM CO., LTD. is under license.
  • USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.
  • Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
  • macOS Sonoma and iPadOS are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Android and Chrome are trademarks or registered trademarks of Google LLC.

Support information
